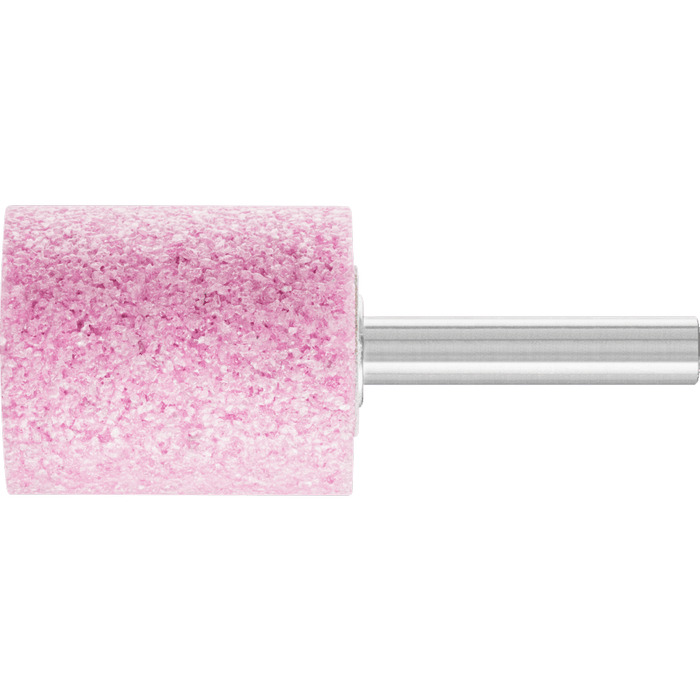

Mounted point hardness O

ZY 3240 8 AR 24 O5V Steel EDGE Pferd

Item-no.: 1229650Supplier number: 31187272customs tariff number: 68042230EAN: 4007220098196

PU (Packaging): 5 PieceQuantity:  5 PiecePackable

Description

The STEEL EDGE type is particularly well-suited to edge grinding and deburring work on steel and cast steel components. Its applications also include grinding of chamfers in preparation for weld seams and grinding of contours. The cylindrical shape ZY is ideal for grinding bores, radii and contours.

Attributes

Form

W 231

Grit size

Length, shaft

40 mm

Max. RPM

29800 RPM

RPM, max.

29800 RPM

RPM, opt.

21000 RPM

Series

byly_ZY_O5V_31

Width metric

40 mm

Ø External metric

32 mm

Ø Shaft metric

8 mm

Downloads

Catalog 3byly_wzh26-katalog-3-web-de-de.pdf
7.59 MB

Catalog 3 - GPSR 1byly_safety_pdf_catalog_3.pdf
253.8 kB
