Mounted point hardness R

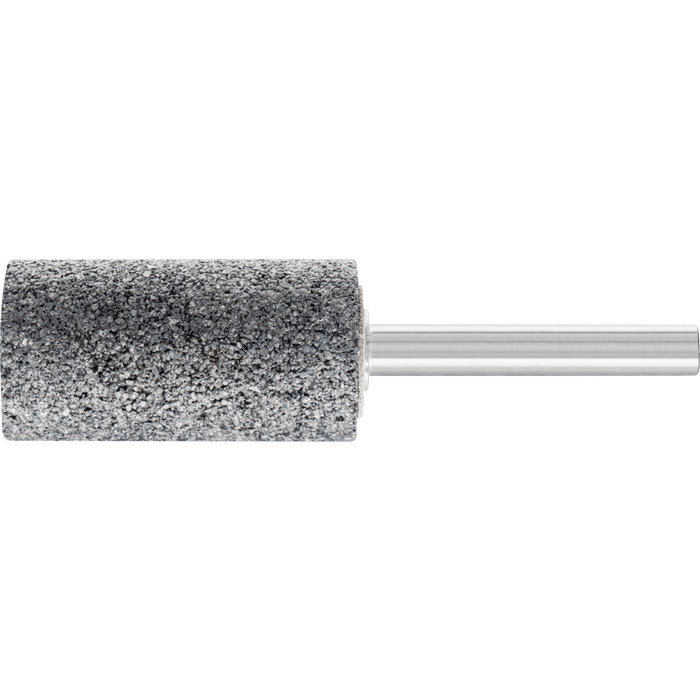

ZY 2040 6 CU 30 R5V CAST EDGE N PferdItem-no.: 1233408Supplier number: 31133531customs tariff number: 68042230EAN: 4007220803028
PU (Packaging): 50 PieceQuantity:
50 PiecePackable
Item available in 2 variants:
Price and stock visible after login
Description
The cylindrical shape ZY is ideal for grinding bores, radii and contours. The CAST EDGE type for foundries is particularly well-suited to general use and for grinding away metal contamination and grinding out sand contamination and sand deposits on grey and nodular cast iron workpieces in conjunction with high cutting speeds.
Attributes
Form
W 205
Grit size
30
Length, shaft
40 mm
Max. RPM
32400 RPM
RPM, max.
32400 RPM
RPM, opt.
32400 RPM
Series
byly_ZY_CU_R5V_N_31
Version
CAST EDGE N
Width metric
40 mm
Ø External metric
20 mm
Ø Shaft metric
6 mm
