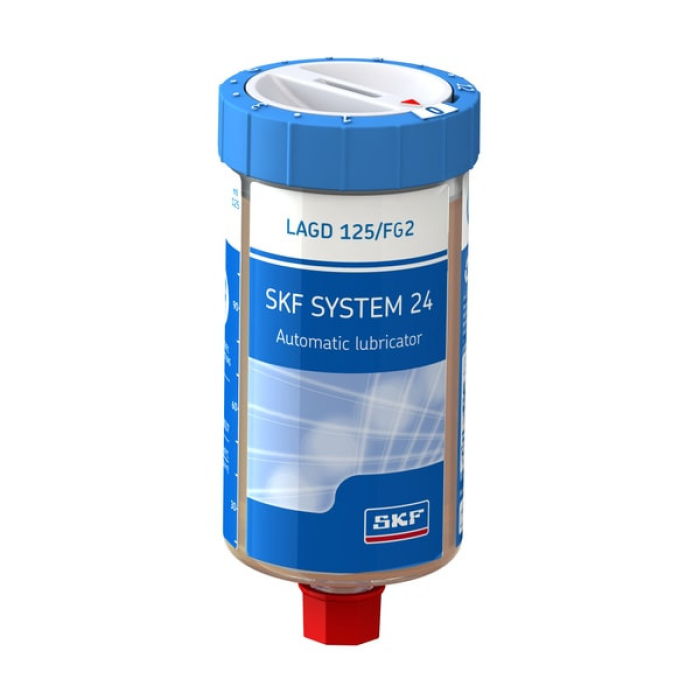

Lubricator
LAGD 125/FG2 SKF MaProItem-no.: 1526918Supplier number: LAGD 125/FG2customs tariff number: 84798997EAN: 7316579987998
PU (Packaging): 10 PieceQuantity:
1 PiecePackable
Price and stock visible after login
Description
The SKF SYSTEM 24 LAGD 125/FG2 is filled with SKF LGFG 2 food grade bearing grease recommended for applications in the food and beverage industry. Our gas driven single point automatic lubricators are available in many configurations, pre-filled with SKF lubricants or empty, suitable for filling with oil. With tool-free activation and time-setting they allow easy, safe and accurate relubrication.
Attributes
Antriebsmechanismus
Schutzgas-erzeugende Gaszelle
Connection thread
R 1/4
Eigensicherheitszulassung
II 1G Ex ia IIC T6 Ga, II 1D Ex ia IIIC T200 85°C Da, I M1 Ex ia I Ma
Lubricant
LGFG 2
Lubricant operating temperature range
-30 to +140 °C
Maximale Zulaufleitungslänge
0.3 m
Maximum pressure
5 bar
Nominelle Entleerungszeit
Adjustable, 1-12 months
Protection class (IP)
IP 68
Schmierstoffmenge
125 ml
Umgebungstemperaturbereich
-20 to +60 °C
Weight
0,20 kg
power supply unit
Gas cell
