Lubricator System 24

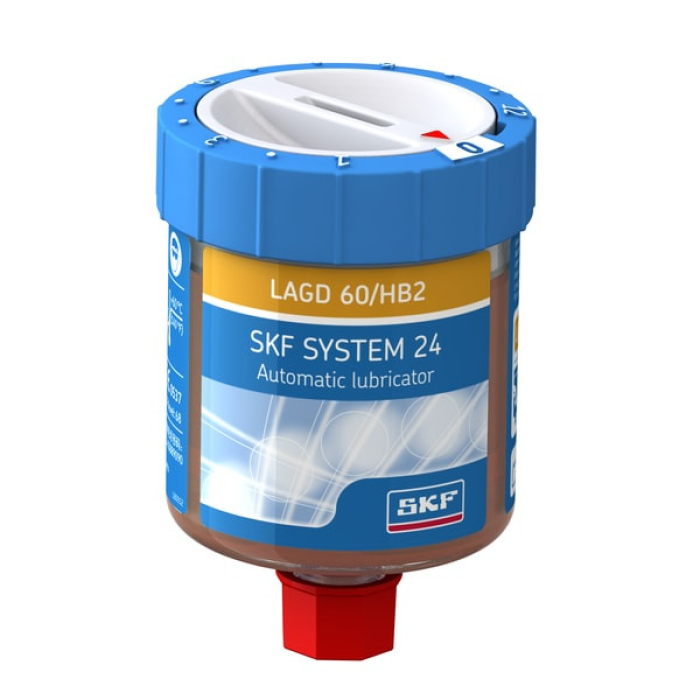

LAGD 60/HB2 Filling LGHB 2 - SKF MaProItem-no.: 1385385Supplier number: LAGD 60/HB2customs tariff number: 84798997EAN: 7316572053089
PU (Packaging): 10 PieceQuantity:
10 PiecePackable
Price and stock visible after login
Description
The SKF SYSTEM 24 LAGD 60/HB2 is filled with SKF LGHB 2 grease for high loads, wet environments and high temperatures, recommended for plain bearings, conveyors, applications with high loads and low speeds. Our gas driven single point automatic lubricators are available in many configurations, pre-filled with SKF lubricants or empty, suitable for filling with oil. With tool-free activation and time-setting they allow easy, safe and accurate relubrication.
Attributes
Antriebsmechanismus
Schutzgas-erzeugende Gaszelle
Connection thread
R 1/4
Eigensicherheitszulassung
II 1G Ex ia IIC T6 Ga, II 1D Ex ia IIIC T200 85°C Da, I M1 Ex ia I Ma
Lubricant
LGHB 2
Lubricant operating temperature range
-20 to +150 °C
Maximale Zulaufleitungslänge
0.3 m
Maximum pressure
5 bar
Nominelle Entleerungszeit
Adjustable, 1-12 months
Protection class (IP)
IP 68
Schmierstoffmenge
60 ml
Umgebungstemperaturbereich
-20 to +60 °C
Weight
0,12 kg
power supply unit
Gas cell
