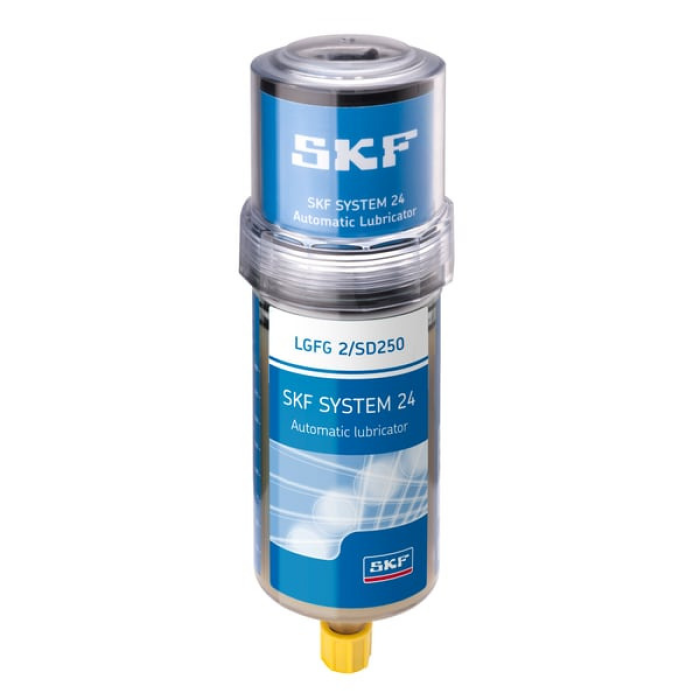

Lubricator
TLSD 250/FG2 SKF MaProItem-no.: 1526911Supplier number: TLSD 250/FG2customs tariff number: 84798997EAN: 7316579988605
Quantity:
1 PiecePackable
Price and stock visible after login
Description

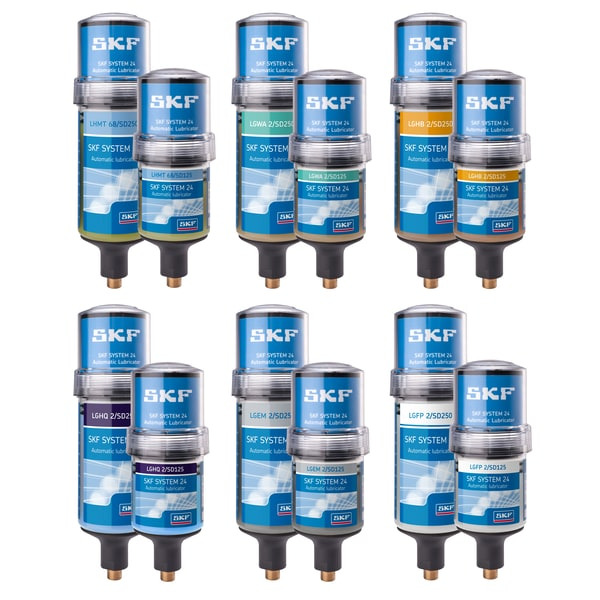

TLSD 250/FG2 is filled with SKF LGFG 2 food grade bearing grease recommended for applications in the food and beverage industry. Our electro-mechanical single point automatic lubricators are available in many configurations, pre-filled with SKF lubricants, both as battery or cable driven. Using automatic lubricators improves employee safety, increases machine reliability and optimizes maintenance operations.
Attributes
Antriebsmechanismus
Elektromechanisch
Battery
Battery pack, TLSD 1-BAT
Battery capacity
2.7 Ah
Battery type
Alkali-manganese
Battery voltage
4.5 V
Connection thread
G 1/4
Höchste Abgabeeinstellung
8.3 ml/d
Lubricant
LGFG 2
Lubricant operating temperature range
-30 to +140 °C
Maximale Zulaufleitungslänge
3 m
Maximum pressure
5 bar
Niedrigste Abgabeeinstellung
0.7 ml/d
Nominelle Entleerungszeit

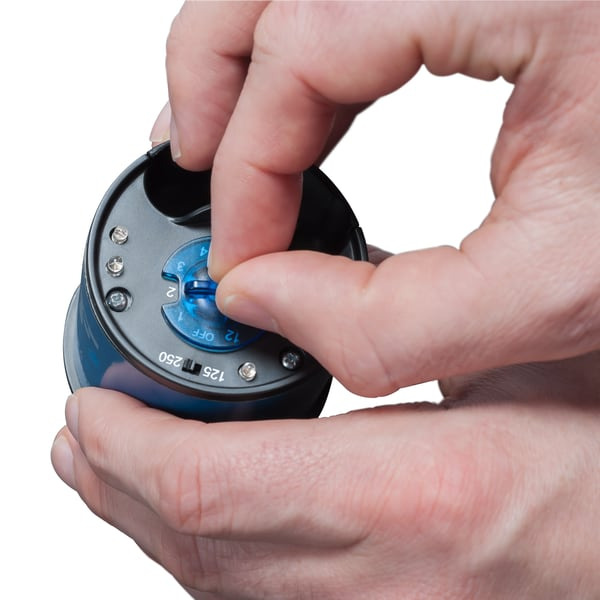

User adjustable: 1, 2, 3, 4, 6, 8, 10 and 12 months
Protection class (IP)
IP 65
Schmierstoffmenge
250 ml
Umgebungstemperaturbereich
0 to +50 °C
Weight
0,74 kg
power supply unit
Battery pack
