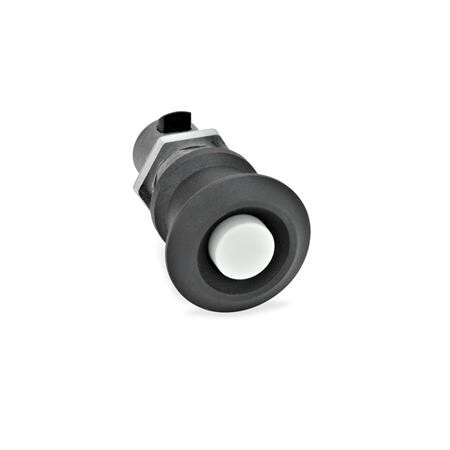

Snap lock
GN 315-A1ZD - Zinc die casting
Item-no.: 1196198Supplier number: 315-A1EAN: 4045525591028
Quantity:
1 PiecePackable
Item available in 2 variants:
Price and stock visible after login
Description
Snap locks GN 315 are characterised by a radial, spring-loaded slide causing the locking action. When closing the door, the locking action sets in automatically. The bevelled slide is first pushed back via an appropriately arranged lug and then moved into the locking position by the pressure spring. The door is unlocked via the push button. To operate the door, these snap locks are fitted with an operating button.
Attributes
A min.
18
Clamping area
A 1
L1
52
Material
ZD - Zinc die casting
RoHS
Ja
Weight
0.100 kg
w Adjustment range
5
