Quick-release connector
GN 25B-10-S-P-SZ-4Item-no.: 1658564Supplier number: 25B-10-S-P-SZ-4EAN: 4045525896161
Quantity:
1 PiecePackable
Item available in 2 variants:
Price and stock visible after login
Description

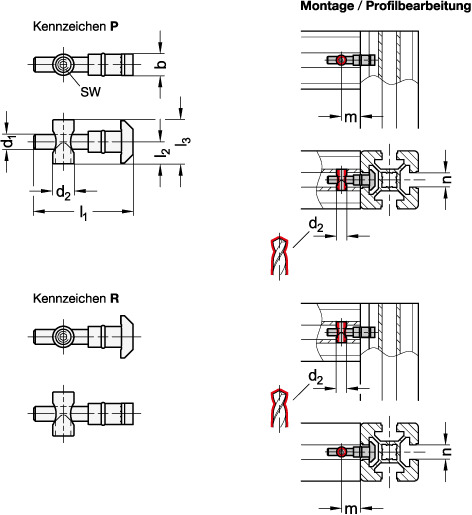

Quick release connectors GN 25b fasten aluminum profiles together at right angles. Only one profile has to be machined. The connection can be freely positioned and slid along the slot. The internal hex used for clamping is situated for especially easy access. If panels are used, they must be suitably pocketed depending on the type, coding and installation orientation. Quick release connectors of type S are used when the slot is to be closed by a cover profile. Quick release connectors are supplied in bundles. The table shows the quantity included in each bundle.
Attributes
Colour code
P - Parallel sliding block
Form
S - Symmetrical mounting bolt
Gebinde (Stück)
4
Groove width n
10
L1
46
L2
10.3
RoHS
Ja
SW
3
Tightening torque
6 Nm
Tightening torque in Nm
6
Weight
0.116 kg
Werkstoff / Oberfläche
SZ - Steel, galvanised, blue passivated
b
10
d1
6.8
d2
10
l1 ≈
46
l3
20
m
22.5
