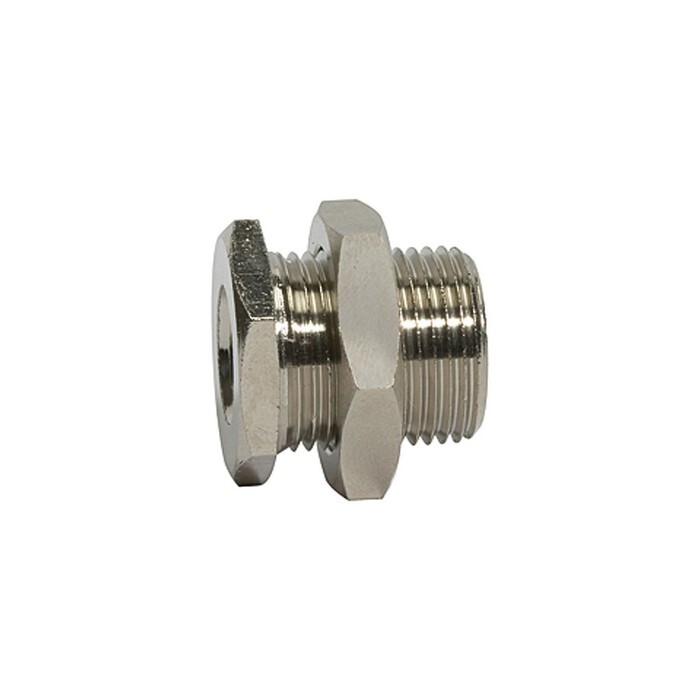

Bulkhead fitting value line series
M 28x1.5, IG 1/2" Nickel-plated brassItem-no.: 1247470Supplier number: 232.04-N-Ecustoms tariff number: 74122000EAN: 4047322184298
Quantity:
1 PiecePackable
Item available in 4 variants:
Price and stock visible after login
Description
Bulkhead fitting »value line«, M28x1.5 o., G 1/2 i., Operating pressure max 60 bar, Operating temp. max 150°C, nickel-plated brass. For air, water, steam, oil, etc.
Attributes
External thread
M28x1,5
Gewinde 1
G 1/2 IG
Gewinde 2
M28x1,5 AG
Internal thread
G 1/2

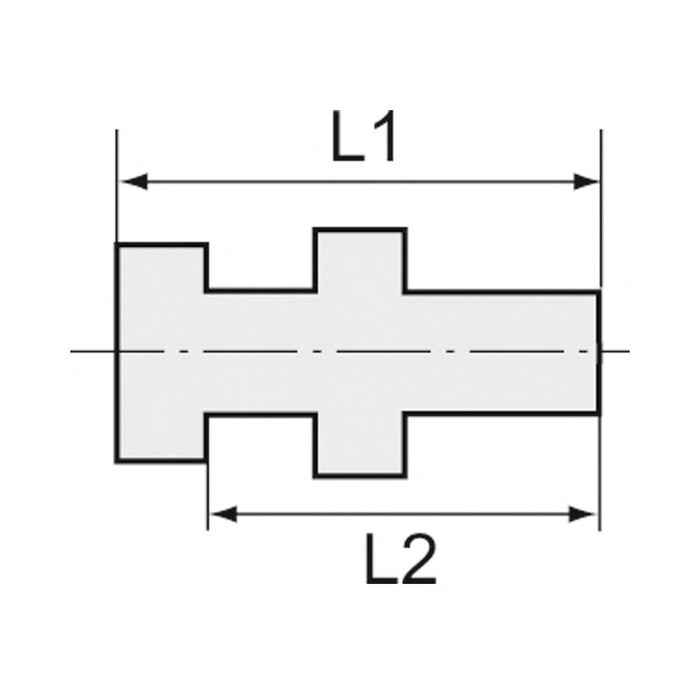

L1
33,0 mm
L2
27,0 mm
Max. operating pressure
60 bar
Operating temperature max.
150 °C
Riegler article number
115521
SW 1
32 mm
SW 2
36 mm
