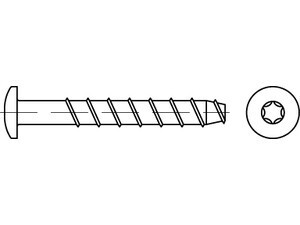

Schraubanker mit Rundkopf Pan Head T30
6,0x40 mm, blau verzinkt MULTI-MONTI MMSplus-PCarbon steel
Item-no.: 1283943Supplier number: 48483EAN: 4019787484831
PU (Packaging): 100 PieceQuantity:
100 PiecePackable
Price and stock visible after login
Description
article 88908 steel hardened MMSplus-P zinc plated MULTI-MONTI screw-in-anchors MMSplus-P Pan head with hexalobular socket - dimension: 6 x 40 PU=S (100 pieces)
Attributes
Attachment thickness, tfix standard
5 mm
Borehole depth, h standard
40 mm
Diameter, d
6,0 mm
Drill diameter, d0
5,0 mm
Drive
T-Drive
Drive size
T-30
Durchmesser
6.00 mm
Form
P
Gewicht
0.915 KGM
Head design
PanHead, round head
Head diameter, dk
11,0 mm
Length (battery)
40.00 mm
Length, l
40 mm
Material
Carbon steel
Min. edge distance, c min
30 mm
Minimum component thickness, hmin
100 mm
Normart
REYHER-Artikel
Normnummer
88908
Recommended max. power output of the impact wrench, Tmax1
75 Nm
Screw-in depth, h nom standard
35 mm
Surface
galvanised blue, A2K
Thread length, lg
37 mm
Through hole in the attachment part, df
7 mm
