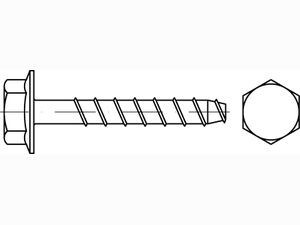

Schraubanker mit Sechskantkopf SW10
7,5x100 mm, verzinkt, Scheibe angepresst MULTI-MONTI MMSplus-SSCarbon steel
Item-no.: 1283995Supplier number: 49817EAN: 4019787498173
PU (Packaging): 50 PieceQuantity:
50 PiecePackable
Price and stock visible after login
Description
article 88902 steel hardened MMSplus-SS zinc plated MULTI-MONTI screw-in-anchors MMSplus-SS hexagon head with with pressed washer - dimension: 7,5 x 100 PU=S (50 pieces)
Attributes
Attachment thickness, tfix standard
45/65 mm
Borehole depth, h standard
65/40 mm
Diameter, d
7,5 mm
Drill diameter, d0
6,0 mm
Drive
Hexagon head
Drive size
SW-10
Durchmesser
7.50 mm
Form
SS
Gewicht
2.698 KGM
Head design
Hexagon head with pressed-on disc
Head diameter, dk
14,0 mm
Length (battery)
100.00 mm
Length, l
100 mm
Material
Carbon steel
Min. edge distance, c min
30 mm
Minimum component thickness, hmin
100 mm
Normart
REYHER-Artikel
Normnummer
88902
Recommended max. power output of the impact wrench, Tmax1
120 Nm
Screw-in depth, h nom standard
55/35 mm
Surface
galvanised blue, A2K
Thread length, lg
77 mm
Through hole in the attachment part, df
9 mm
