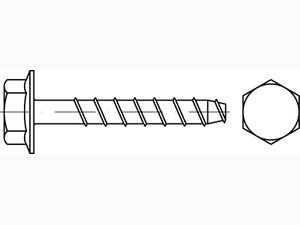

Screw anchor with hexagon head SW8
6.0x50 mm, galvanised, disc pressed on MULTI-MONTI MMSplus-SSCarbon steel
Item-no.: 1283898Supplier number: 48383EAN: 4019787483834
PU (Packaging): 100 PieceQuantity:
100 PiecePackable
Price and stock visible after login
Description
article 88902 steel hardened MMSplus-SS zinc plated MULTI-MONTI screw-in-anchors MMSplus-SS hexagon head with with pressed washer - dimension: 6 x 50 PU=S (100 pieces)
Attributes
Attachment thickness, tfix standard
5/15 mm
Borehole depth, h standard
50/40 mm
Diameter, d
6,0 mm
Drill diameter, d0
5,0 mm
Drive
Hexagon head
Drive size
SW-8
Durchmesser
6.00 mm
Form
SS
Gewicht
1.030 KGM
Head design
Hexagon head with pressed-on disc
Head diameter, dk
11,0 mm
Length (battery)
50.00 mm
Length, l
50 mm
Material
Carbon steel
Min. edge distance, c min
30 mm
Minimum component thickness, hmin
100 mm
Normart
REYHER-Artikel
Normnummer
88902
Recommended max. power output of the impact wrench, Tmax1
100 Nm
Recommended max. power output of the impact wrench, Tmax2
75 Nm
Screw-in depth, h nom standard
45/35 mm
Surface
galvanised blue, A2K
Thread length, lg
47 mm
Through hole in the attachment part, df
7 mm
