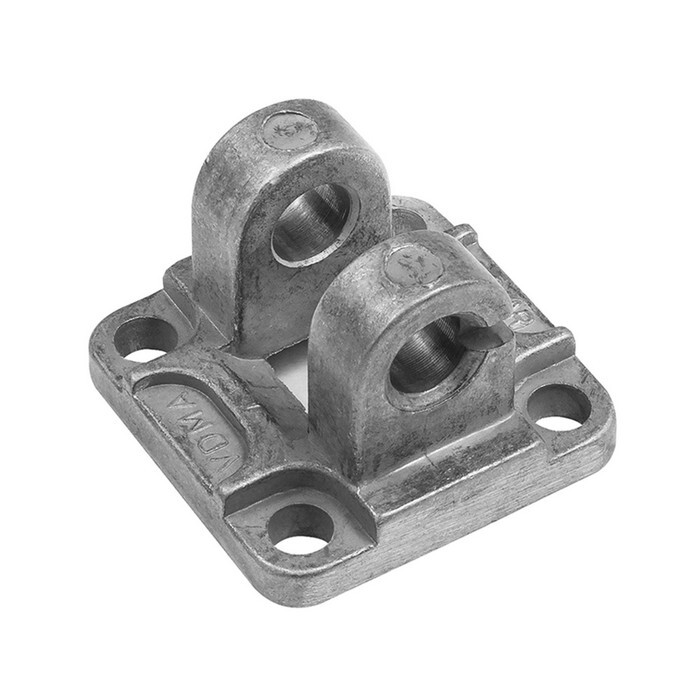

Swivelling fork attachment
Ø 40 mm for spherical swivel eye mountingItem-no.: 1406581Supplier number: 453.024EAN: 4047322628587
Quantity:
1 PiecePackable
Item available in 6 variants:
Price and stock visible after login
Description
Female hinge model for articulated male hinge model, ISO 15552, ISO 21287, Ø40, 4 screws, 1 bolt and retainer.
Attributes
Application
for spherical swivel eye mounting
For cylinder
ISO 15552, ISO 21287
Material
Aluminium
Riegler article number
156681
Suitable for piston Ø
40 mm
Version
with 4 screws, 1 bolt and lock
