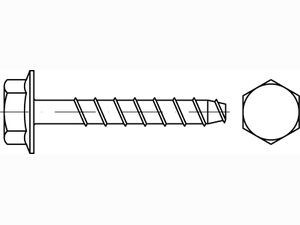

Screw anchor with hexagon head SW10
7.5x60 mm, galvanised, washer pressed on MULTI-MONTI MMSplus-SSHardened steel
Item-no.: 1283903Supplier number: 48393customs tariff number: 73181499EAN: 4019787483933
PU (Packaging): 50 PieceQuantity:
50 PiecePackable
Price and stock visible after login
Description
article 88902 steel hardened MMSplus-SS zinc plated MULTI-MONTI screw-in-anchors MMSplus-SS hexagon head with with pressed washer - dimension: 7,5 x 60 PU=S (50 pieces)
Attributes
Attachment thickness, tfix standard
5/25 mm
Borehole depth, h standard
65/40 mm
Diameter
7.50 mm
Diameter, d
7,5 mm
Drill diameter, d0
6,0 mm
Drive
Hexagon head
Drive size
SW-10
Form
SS
Head design
Hexagon head with pressed-on disc
Head diameter, dk
14,0 mm
Length (battery)
60.00 mm
Length, l
60 mm
Material
Hardened steel
Min. edge distance, c min
30 mm
Minimum component thickness, hmin
100 mm
Recommended max. power output of the impact wrench, Tmax1
120 Nm
Screw-in depth, h nom standard
55/35 mm
Standard number
88902
Surface
galvanised blue, A2K
Thread length, lg
57 mm
Through hole in the attachment part, df
9 mm
Weight
1.896 KGM
