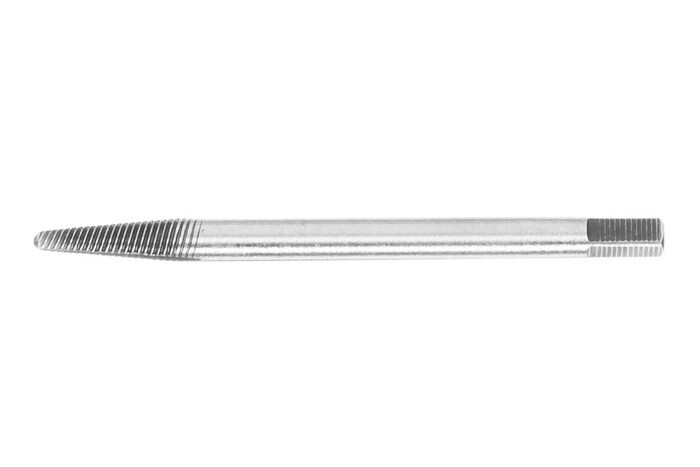

Screw extractor
Size 1 L50 mm, for M 3-6 Gedore 8551 S 1Item-no.: 1185272Supplier number: 8551 S 1customs tariff number: 82079091EAN: 4010886930519
Quantity:
1 Piece
=
1 PackagingPackable
Item available in 6 variants:
Price and stock visible after login
Description
For removing broken screws, bolts and tube ends, Chrome vanadium steel, 54-56 HRC, quenched and tempered, Minimum extraction force torque thanks to the new cross-sectional geometry, Reduced drilling depth thanks to an optimised thread length, Greater safety for user and component alike, Larger application range, time-saving
Attributes
Antriebsvierkant (metrisch)
2,7 mm
Borehole-Ø
1,8 mm
Diameter range
1,8 - 7,0 mm
Drive square [metric]
2,7 mm
For screw thread (inch)
1/8" - 1/4"
For screw thread (metric)
M3 - M6
Hardness [HRC]
54-56 HRC
Härte (HRC)
54-56 HRC
Material
Chrome vanadium steel
Net weight
3 g
Nominal height
3 mm
Nominal length
50 mm
Nominal width
3 mm
Total height
3 mm
Total length
50 mm
Total width
3 mm
