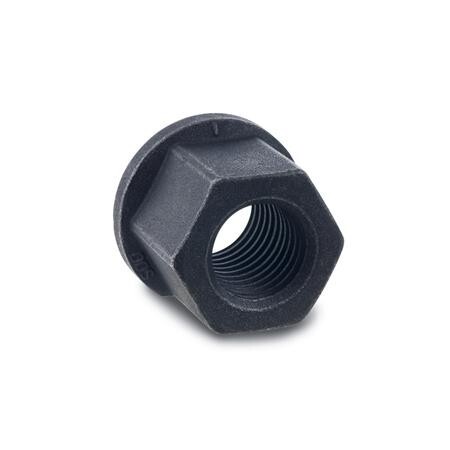

Hexagon nut with collar
DIN 6331-M14 Burnished steel class 10ST - Steel
Item-no.: 1209235Supplier number: DIN 6331-M14EAN: 4045525327115
PU (Packaging): 10 PieceQuantity:
1 PiecePackable
Item available in 10 variants:
Price and stock visible after login
Description
Hex nuts DIN 6331 are used on clamping applications which require frequent clamping and unclamping (m = 1,5 x d1). The collar of the nut eliminates the need for washers. The official standard sheet specifies the additional sizes M 27, M 42 and M 48. But M14 ist not forseen on the official standard sheet.
Attributes
A
4
Material
ST - Steel
RoHS
Ja
SW
22
Screw thread d1
M 14
Weight
0.051 kg
d2
28
e min.
24.6
m
21
