Side pressure piece without seal
GN 715-3-10-SA with steel pinAL - Aluminium
Item-no.: 1211774Supplier number: 715-3-10-SAEAN: 4045525357822
PU (Packaging): 10 PieceQuantity:
1 PiecePackable
Item available in 40 variants:
Price and stock visible after login
Description

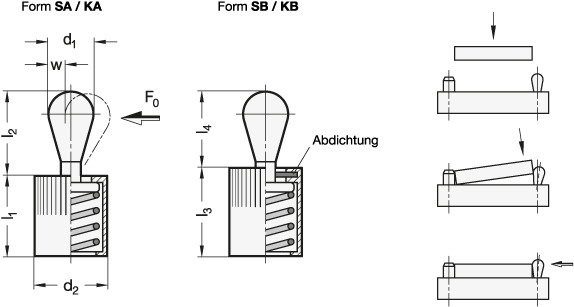

Spring loaded side thrust pins GN 715 are versatile and practical elements for holding, positioning and clamping of workpieces. They eliminate costly alternatives, are space saving and easy to install. The knurled body requires only a hole tolerance of H8. For mounting the side thrust pins a suitable mounting tool GN 715.1 is available (see table).
Attributes
A1
1.5
Article no. for assembly mandrel
715.1-3
Form
SA - Push pin steel, without seal
L1
7
L2
4
Material
AL - Aluminium
Outer diameter d1
3
RoHS
Ja
Side pressure force
10
a2
3.5
d2
6
d3
6
hmin.
7
l3
7
l4
4
w
1
x1
1
x2
0.75
