Products
Riegler

Servicegerät für Kalibrier-&Testarbeiten

Messbereich -1 / +40 bar, G 1/4 inkl. Werkskalibrierschein
Item-no.: 1732681Supplier number: KTS-40-1EAN: 4047322751292

Quantity: ​​ 1 PiecePackable
Item available in 1 variants:
Short-term Sourcing

Description

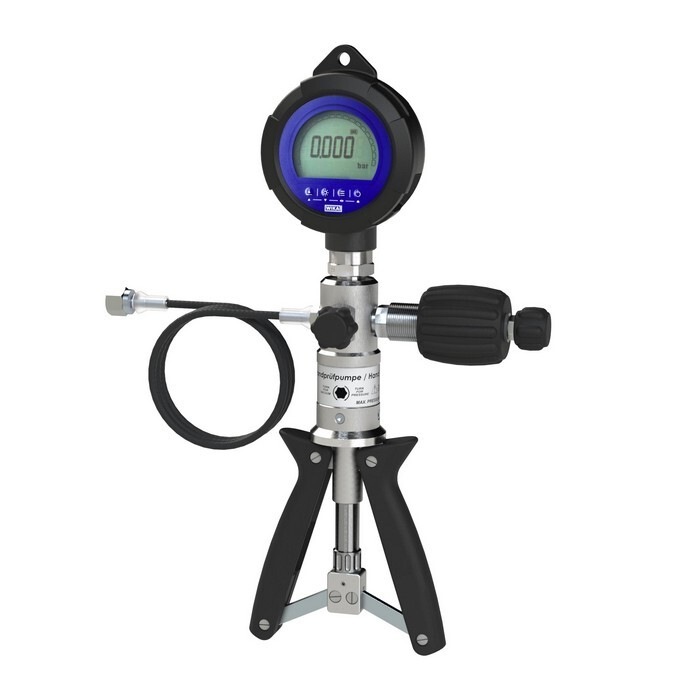

Calibration test and service equipment, measurement range -1 / +40 bar, G 1/4, incl. factory calibration certificate. Service case for quick and precise pressure gauge calibration on site. Suitable for service and maintenance providers of all kinds as well as instrumentation control workshops and quality assurance. Simple operation using four buttons. The high sampling rate guarantees an accurate analysis at the measuring point. Comprised of a CPG1200 digital gauge and a CPP40 pneumatic hand test pump with a connecting cable for pressure generation. Operating manual, calibration certificate 3.1, three AA batteries and housing protective cap made of VMQ (silicone) are enclosed. Includes a plastic emergency case with foam padding.
Attributes
Accuracy
0.25% FS
Housing
PBT with 30% glass fibre content
Measuring range max. bar
40 bar
Measuring range min. bar
-1 bar
Medium temperature max.
50 °C
Medium temperature min.
-20 °C
Operating temperature max.
50 °C
Operating temperature min.
-10 °C
Parts in contact with measuring material
CrNi steel 316L
Screw thread
G 1/4 AG
