Sicherheits-Kugelhahn
IG 1.1/2"Rp, DN40, PN14, PTFE abschließbar, Entlüftungsbo., Mes. ver.Item-no.: 1245944Supplier number: 321.08customs tariff number: 84818081EAN: 4047322366243
Quantity:
1 PiecePackable
Item available in 8 variants:
Price and stock visible after login
Description

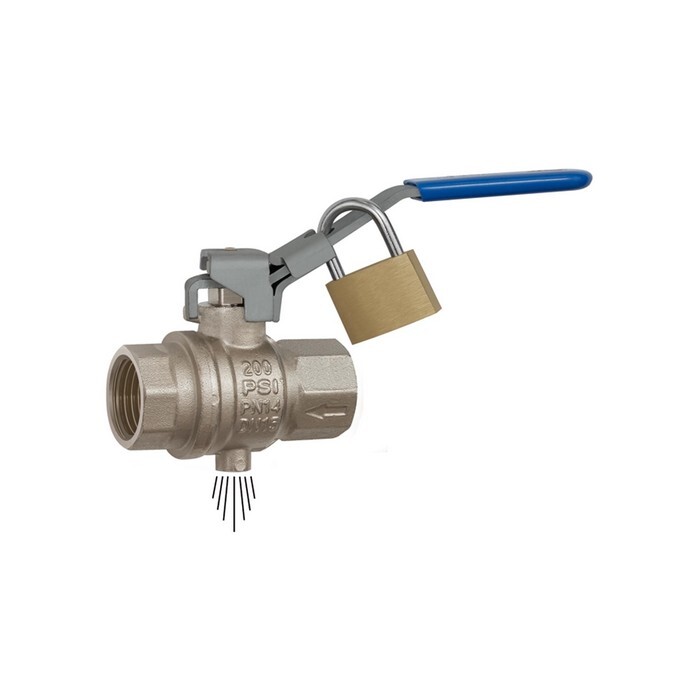

Ball valve, lockable, venting hole G 1/4, nickel-plated brass, operating temp. max. 100 °C, Rp 1 1/2, DN 40, PN max. 14 bar. Ball valves, two parts, made of nickel-plated brass. Specially designed for pneumatic applications. The valve shuts off the supply line and bleds the application area. Lockable hand lever in closed position ensures a high protection against manipulation.
Attributes

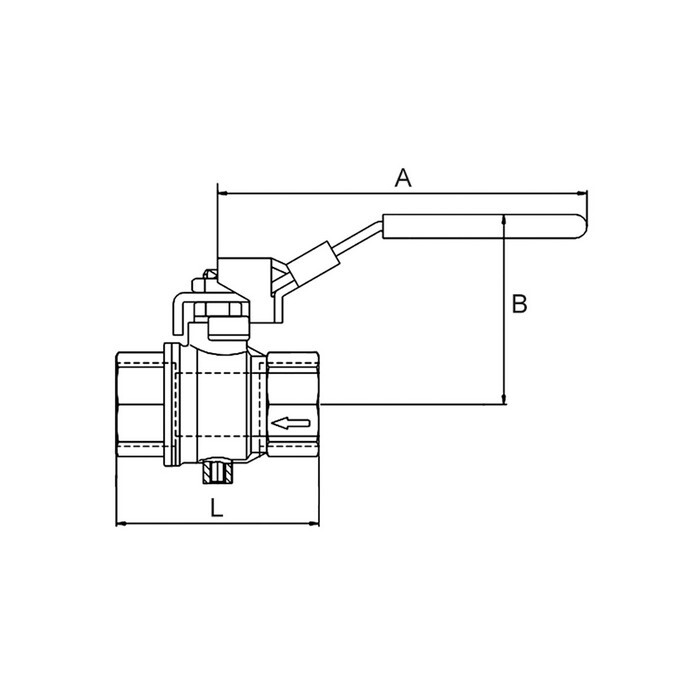

A
157,0 mm
Ball
Hard chrome-plated brass
Ball seal
PTFE
Bohrungsdurchmesser Vorhängeschloss
ca. 7,3 mm
DN
40
Hand lever
Steel - PVC coated
Housing
Nickel-plated brass
L
102,0 mm
Max. operating pressure
14 bar
Operating temperature max.
100 °C
Operating temperature min.
-10 °C
Riegler article number
103155
Screw thread
Rp 1 1/2
Spindle seal
FKM
Thread material
Nickel-plated brass
Thread standard
Rp thread to EN 10226
Vent hole
G 1/4
b
86,0 mm
