Riegler

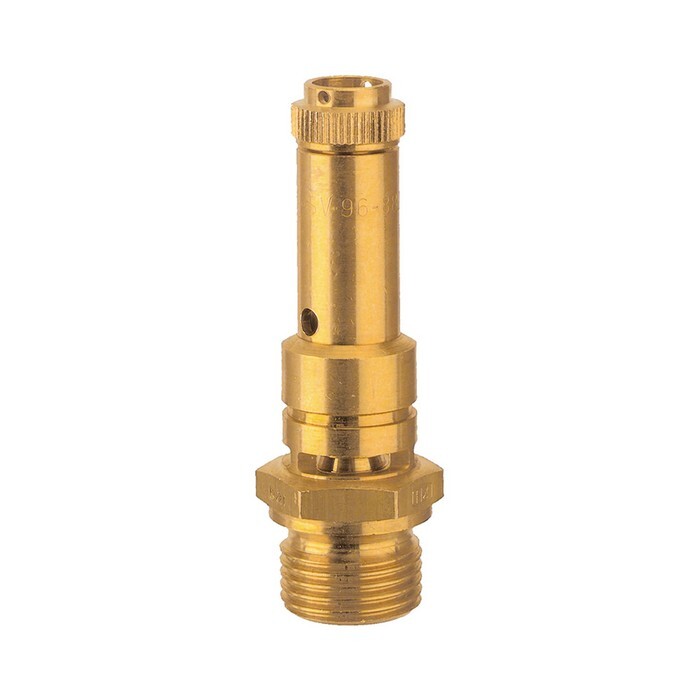

Safety valve full stroke DN8

AG 1/4", response pressure 11 bar max 180°C, brass
Item-no.: 1244637Supplier number: 226.01-11,0customs tariff number: 84814090EAN: 4047322041027

Quantity: ​​ 1 PiecePackable
Item available in 185 variants:
Immediately Available

Description
Full stroke safety valve DN 8, Brass, Operating temperature -25 °C to 180 °C, G 1/4, AF 20, Trigger pressure 11 bar, Type tested. For compressed air and non-toxic, non-flammable gases, cannot be used for liquids due to free blow-off, not suitable for steam. These valves are TÜV approved and have a TÜV type test number.
Attributes
A
18,0 mm
Compression spring
Stainless steel
Housing
brass
Max. operating pressure
50 bar
Minimum activation pressure
11 bar
Operating pressure min.
0,2 bar
Operating temperature max.
180 °C
Operating temperature min.
-25 °C
Riegler article number
104028
SW
20 mm
Screw thread
G 1/4
Sealing material
FKM
c
63,0 mm
d
10,0 mm
