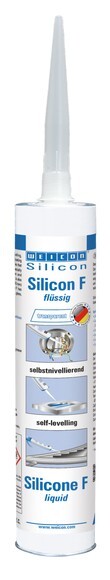

Silicone F
310 ml cartridge, liquid WeiconItem-no.: 1277185Supplier number: 10000492EAN: 4024596005153
PU (Packaging): 12 PieceQuantity:
1 PiecePackable
Price and stock visible after login
Description
The coating and casting compound WEICON Silicone F is liquid, self-levelling, spreadable, solvent-free, neutral-curing, weathering-, ageing-, and temperature-resistant up to +180 °C (+356 °F) and suitable for universal use. It can be used for elastic bonds, insulation and impregnation and even for the sealing and casting (max. 10 mm) of technical components. It adheres well to steel, aluminium, glass, ceramics, and many other materials. The product can be used in machine and system construction, in plastic processing, the energy and electrical industry, in exhibition construction and shopfitting, and in many other industrial areas.
Attributes
Base
1 K. polysiloxane (oxime)
Bruchdehnung (Zug)|ISO 37, S3A
600 %
Colour
transparent, colourless
Composition
Liquid
Construction material class|DIN 4102
B 2
Density|(+20°C) DIN 51757
1,03 g/cm³
Dichte
1,03 g/cm³
Dielectric strength|DIN EN 60455-3-8
17,0 kV/mm
Durchschlagsfestigkeit
17,0 kV/mm
Elongation at break |ISO 37, S3A
600.0 %
Elongation stress value at 100 % | ISO 37 S3A
0,2 N/mm²
Gap bridging up to max.
3 mm
Hardening method
moisture-curing
Hardness (Shore A)|DIN ISO 7619
10±5
Hardness condition
+5 to +40 °C and 30 % to 95 % relative humidity
Movement absorption max.
20 %
Overcoatable
No
Processing temperature
+5°C to +40°C °C
Sales bundle
Cartridge
Skin forming time
15 Min.
Temperature resistance
-50°C bis +180°C
Tensile strength of the pure adhesive and sealant |ISO 37
1.8 N/mm²
Tensile strength|ISO 37 / S3A
1.8 N/mm²
Thermal conductivity
0.2 W/m·K
Through resistance
1·10¹² Ω·m
Through-hardening speed|in the first 24 hours
2 -3 mm
Viscosity
30.000 mPa·s
Volume change|DIN 52451
4 %
