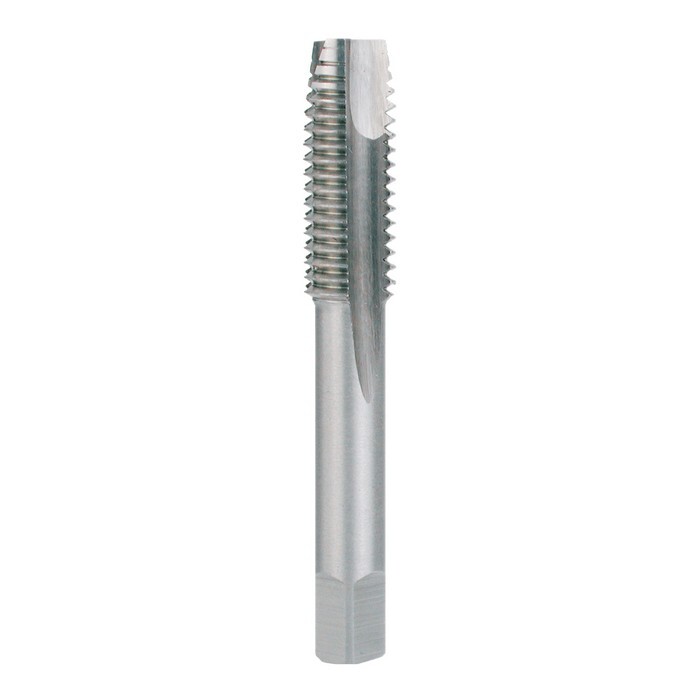

Single-cut tap
HSSCo M12x1.75 Ruko 231120EHSSE-Co 5
Item-no.: 1293264Supplier number: 231120EEAN: 4007140095213
Quantity:
1 PiecePackable
Price and stock visible after login
Description
The single-cut tap HSS for through threads in unalloyed and low-alloyed steels up to a strength of 800 N/mm². The single-cut tap HSSE-Co 5 for through threads in unalloyed and alloyed steels up to a strength of 1000 N/mm², malleable cast iron and non-ferrous metals. The thread can be cut in one operation by hand or machine.
Attributes
Coat
Uncoated
Core hole diameter
10,2 mm
Cutting direction
right-hand cutting
DIN
352
Flank angle
60°
Length (battery)
75 mm
Material
HSSE-Co 5
Nominal thread size M
M 12
Series
RUKO043231E
Shaft
Square shank
Spiral length
29 mm
Thread pitch
1,75 mm
Tolerance
ISO 2 6H
