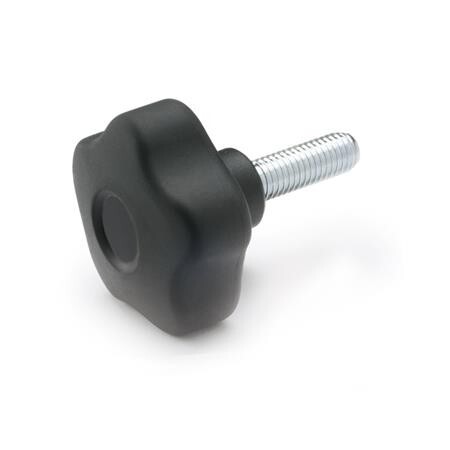

Softline star knob screw
GN 5337.6-43-M6-16PP - plastic
Item-no.: 1484471Supplier number: 5337.6-43-M6-16EAN: 4045525679993
Quantity:
1 PiecePackable
Item available in 17 variants:
Price and stock visible after login
Description
The softline coating makes the star knobs with threaded stud GN 5337.6 particularly user-friendly and ergonomic. The soft, slip-proof contact area improves the contact both in hot (hand perspiration) and in dry ambient conditions, in the event of oily surfaces and even high or low temperatures. The use of star knobs with threaded stud is recommended particularly when heavy duty clamping is required.
Attributes
Handle diameter d1
43
Length l
16
Material
PP - plastic
RoHS
Ja
Screw thread d2
M 6
Weight
0.022 kg
d3
17
h1
29
h2
11
