Clamping lever, straight
GN 212-36-M16-DItem-no.: 1342329Supplier number: 212-36-M16-Dcustoms tariff number: 73181900EAN: 4045525088283
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Tension levers GN 212 are used as clamping element as well as operating levers.
Attributes
Diameter d
36

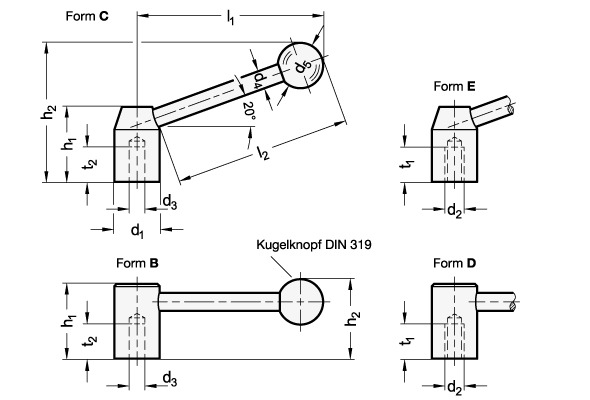

Form
D - Lever straight with thread
Form B Form D
64.5
Handle body material
ST - Steel
L2
138
RoHS
Ja
Screw thread d2 (Form D)
M 16
Weight
0.503 kg
d4
14
d5
35
h1
58
l2 ≈
138
t2 min.
28
