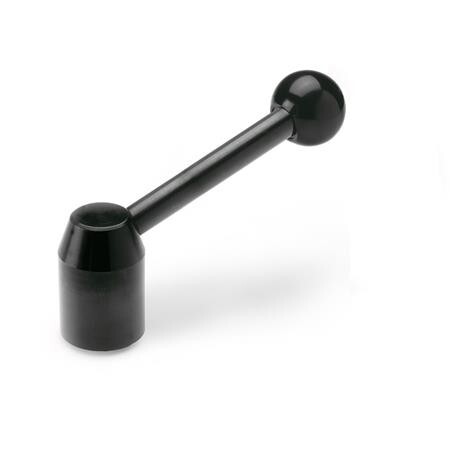

Clamping lever, angled
GN 212-22-M10-EItem-no.: 1190992Supplier number: 212-22-M10-Ecustoms tariff number: 73181900EAN: 4045525087910
Quantity:
1 PiecePackable
Item available in 27 variants:
Price and stock visible after login
Description
Tension levers GN 212 are used as clamping element as well as operating levers.
Attributes
Diameter d
22
Form
E - Lever angled with thread
Handle body material
ST - Steel
L2
85
RoHS
Ja
Screw thread d2 (Form E)
M 10
Weight
0.118 kg
d4
8
d5
20
h1
37
h2 Form CForm E
67
h2 ≈Form CForm E
67
l1 ≈Form EForm C
89.5
l1Form EForm C
89.5
l2 ≈
85
t1 min.
15
t1min.
15
