Adjustable clamping lever
GN 212.3-24-M10-E oblique, IGItem-no.: 1164756Supplier number: 212.3-24-M10-Ecustoms tariff number: 73181900EAN: 4045525090125
Quantity:
1 PiecePackable
Item available in 22 variants:
Price and stock visible after login
Description

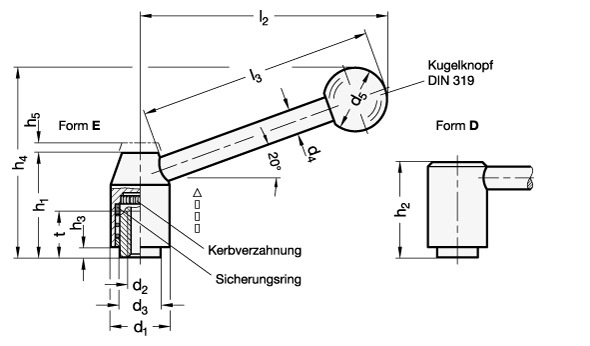

Adjustable tension levers GN 212.3 have proved to be ideal whenever parts have to be clamped in a confined space or a particular lever position is re-quired. The threaded insert is connected with the hub via serrations which can be disengaged. Pulling the lever, disengages the serrations and allowing it to be swivelled to the ideal clamping posi-tion. On releasing the lever it will automatically re-engage.
Attributes
Adjustable
True
Connection thread d2
M 10
Diameter d
24
Form
E - Lever diagonal
Handle body material
ST - Steel
RoHS
Ja
Weight
0.150 kg
d3
16
d4
10
d5
25
h1
40
h3
2.5
h4 ≈Form E
75
h4Form E
75
h5 Rastweg
4.5
l2 ≈Form E
101
l2Form E
101
l3
96
l3 ≈
96
t min.
14
tmin.
14
