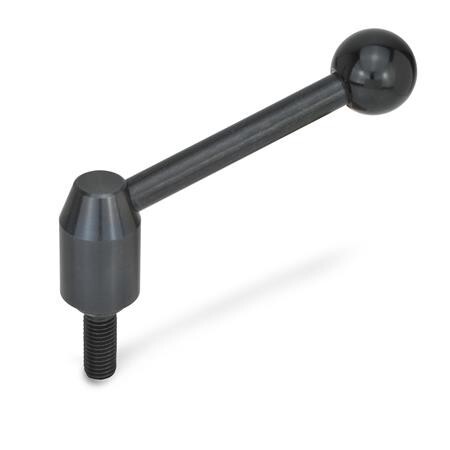

Adjustable clamping lever
GN 212.3-28-M10-16-E oblique, AGItem-no.: 1190897Supplier number: 212.3-28-M10-16-Ecustoms tariff number: 73181900EAN: 4045525090514
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Adjustable tension levers GN 213.3 have proved to be ideal whenever parts have to be clamped in a confined space or a particular lever position is required. The threaded insert is connected with the hub via serrations which can be disengaged. Pulling the lever, disengages the serrations and allowing it to be swivelled to the ideal clamping posi-tion. On releasing the lever it will automatically re-engage.

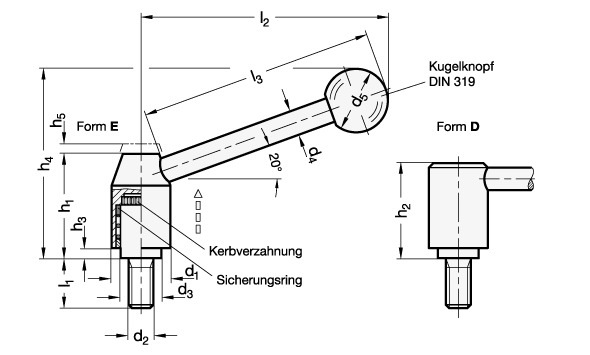

Attributes
Adjustable
True
Connection thread d2
M 10
Diameter d
28
Form
E - Lever diagonal
Handle body material
ST - Steel
RoHS
Ja
Thread length l1
16
Weight
0.280 kg
d3
19
d4
12
d5
30
h1
48.5
h3
4.5
h4 ≈Form E
89
h4Form E
89
h5 Rastweg
4.5
l2 ≈Form E
116
l2Form E
116
l3
110
l3 ≈
110
