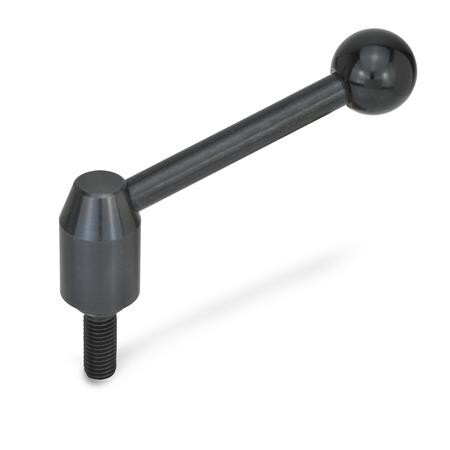

Adjustable clamping lever
GN 212.3-33-M12-25-E oblique, AGItem-no.: 1190927Supplier number: 212.3-33-M12-25-Ecustoms tariff number: 73181900EAN: 4045525091177
Quantity:
1 PiecePackable
Your price: Price on request
Price and stock visible after login
Description
Adjustable tension levers GN 213.3 have proved to be ideal whenever parts have to be clamped in a confined space or a particular lever position is required. The threaded insert is connected with the hub via serrations which can be disengaged. Pulling the lever, disengages the serrations and allowing it to be swivelled to the ideal clamping posi-tion. On releasing the lever it will automatically re-engage.
Attributes
Adjustable
True
Connection thread d2
M 12
Diameter d
33
Form
E - Lever diagonal
Handle body material
ST - Steel
RoHS
Ja
Thread length l1
25
Weight
0.428 kg
d3
23
d4
12
d5
32
h1
55
h3
6
h4 ≈Form E
100.5
h4Form E
100.5
h5 Rastweg
5.5
l2 ≈Form E
131.5
l2Form E
131.5
l3
124
l3 ≈
124
