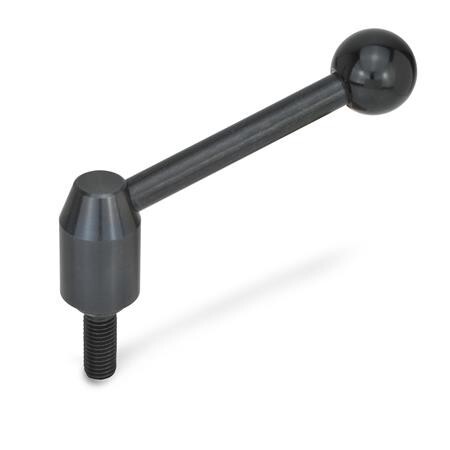

Adjustable clamping lever
GN 212.3-40-M16-50-E oblique, AGItem-no.: 1190953Supplier number: 212.3-40-M16-50-Ecustoms tariff number: 73181900EAN: 4045525091689
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Adjustable tension levers GN 213.3 have proved to be ideal whenever parts have to be clamped in a confined space or a particular lever position is required. The threaded insert is connected with the hub via serrations which can be disengaged. Pulling the lever, disengages the serrations and allowing it to be swivelled to the ideal clamping posi-tion. On releasing the lever it will automatically re-engage.
Attributes
Adjustable
True
Connection thread d2
M 16
Diameter d
40
Form
E - Lever diagonal
Handle body material
ST - Steel
RoHS
Ja
Thread length l1
50
Weight
0.740 kg
d3
28
d4
14
d5
35
h1
68
h3
6
h4 ≈Form E
118
h4Form E
118
h5 Rastweg
5.5
l2 ≈Form E
148
l2Form E
148
l3
138
l3 ≈
138
