Adjustable clamping lever
GN 212.5-24-M10-40-E angled, AG, stainless steelItem-no.: 1190977Supplier number: 212.5-24-M10-40-Ecustoms tariff number: 73181900EAN: 4045525093010
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Adjustable tension levers GN 212.5 have proved to be ideal whenever parts have to be clamped in a confined space or a particular lever position is re-quired. The threaded insert is connected with the hub via serrations which can be disengaged. Pulling the lever, disengages the serrations and allowing it to be swivelled to the ideal clamping position. On releasing the lever it will automatically re-engage.

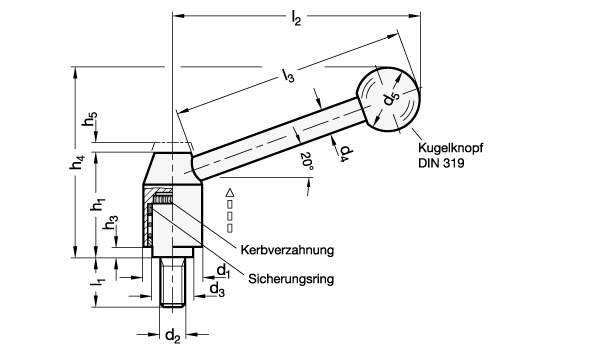

Attributes
Adjustable
True
Connection thread d2
M 10
Diameter d
24
Form
E - Lever diagonal
Handle body material
NI - Stainless steel
L2
101
RoHS
Ja
Thread length l1
40
Weight
0.190 kg
d3
16
d4
10
d5
25
h1
40
h3
2.5
h4
75
h4 ≈
75
h5 Rastweg
4.5
l2 ≈
101
l3
96
l3 ≈
96
