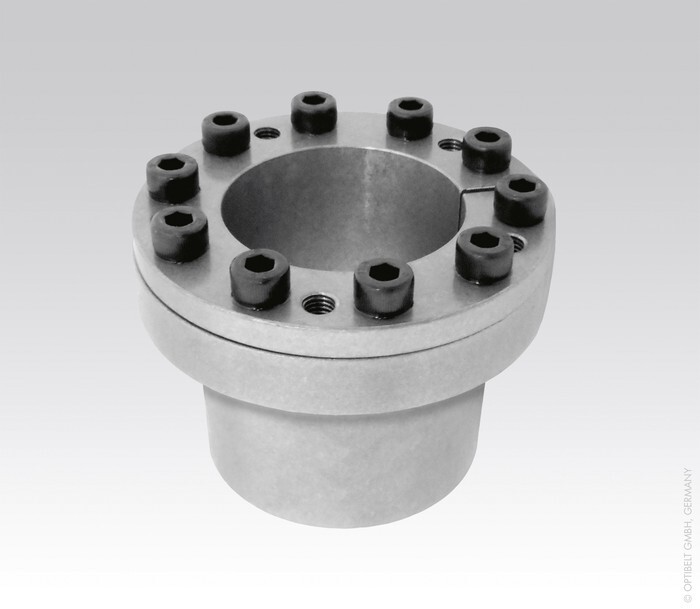

Clamping set
100x125 mm CE02Item-no.: 1177149customs tariff number: 84836080EAN: 4014486241259
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Spannsatz CE02
Attributes
Axial force F transmittable with tightening torque Ms
300 kN
Drehmoment M bei Anzugsmoment Ms übertragbar
14600 Nm
Drehmoment M bei Anzugsmoment Ms übertragbar (Nm)
14600 Nm
Product group
optibelt CE
Screws - Designation
M12x30
Screws - Quantity
12
Screws - tightening torque Ms
145 Nm
Surface pressure hub PN
95 N/mm²
Surface pressure shaft PW
82 N/mm²
Weight
6 kg
Weight per
Piece
b
102 mm
d
125 mm
