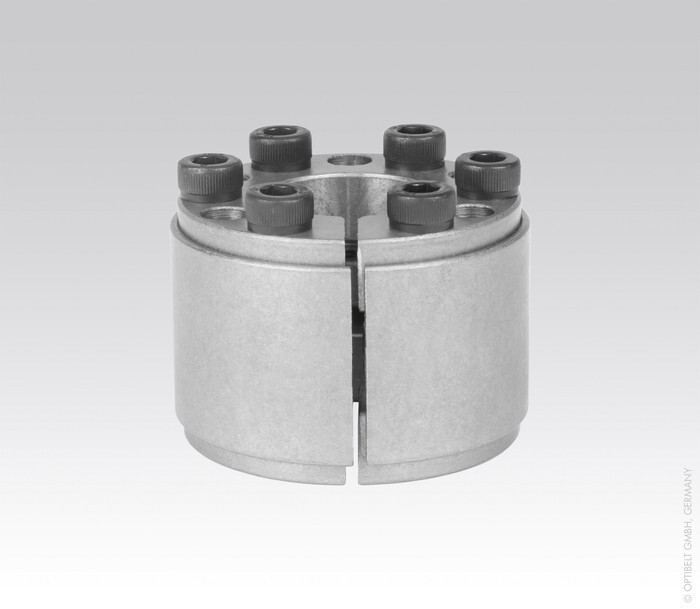

Clamping set
120x165 mm CE08Item-no.: 1074523customs tariff number: 84836080EAN: 4014486243062
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Spannsatz CE08
Attributes
Axial force F transmittable with tightening torque Ms
600 kN
Drehmoment M bei Anzugsmoment Ms übertragbar
36400 Nm
Drehmoment M bei Anzugsmoment Ms übertragbar (Nm)
36400 Nm
Product group
optibelt CE
Screws - Designation
M12x80
Screws - Quantity
14
Screws - tightening torque Ms
145 Nm
Surface pressure hub PN
110 N/mm²
Surface pressure shaft PW
192 N/mm²
Weight
7.7 kg
Weight per
Piece
b
100 mm
d
165 mm
