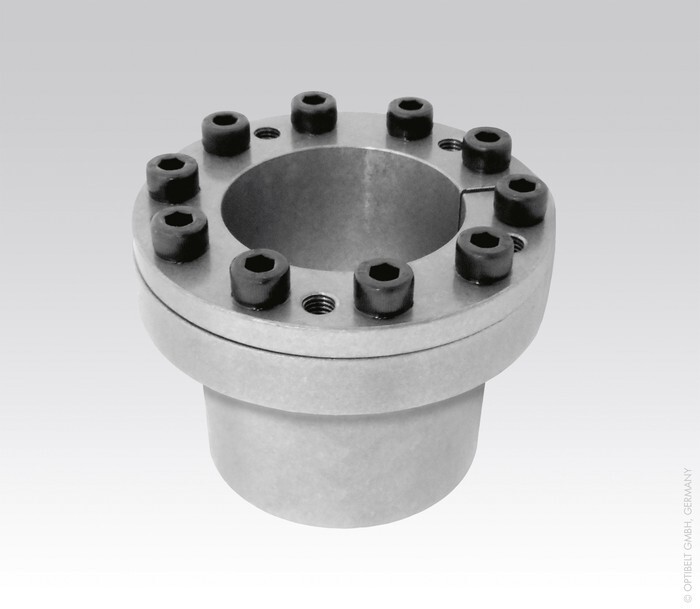

Clamping set
12x18 mm CE02Item-no.: 1074522customs tariff number: 84836080EAN: 4014486240962
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Spannsatz CE02
Attributes
Axial force F transmittable with tightening torque Ms
9 kN
Drehmoment M bei Anzugsmoment Ms übertragbar
55 Nm
Drehmoment M bei Anzugsmoment Ms übertragbar (Nm)
55 Nm
Product group
optibelt CE
Screws - Designation
M4x10
Screws - Quantity
4
Screws - tightening torque Ms
5 Nm
Surface pressure hub PN
96 N/mm²
Surface pressure shaft PW
88 N/mm²
Weight
0.2 kg
Weight per
Piece
b
26 mm
d
18 mm
