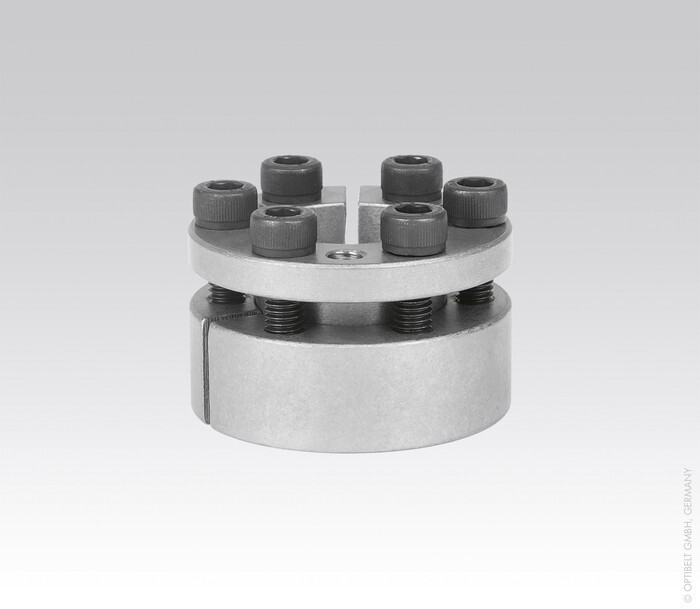

Clamping set
130x180 mm CE04Item-no.: 1455797customs tariff number: 84836080EAN: 4014486241907
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Spannsatz CE04
Attributes
Axial force F transmittable with tightening torque Ms
450 kN
Drehmoment M bei Anzugsmoment Ms übertragbar
29300 Nm
Drehmoment M bei Anzugsmoment Ms übertragbar (Nm)
29300 Nm
Product group
optibelt CE
Screws - Designation
M12x35
Screws - Quantity
12
Screws - tightening torque Ms
145 Nm
Surface pressure hub PN
140 N/mm²
Surface pressure shaft PW
150 N/mm²
Weight
5.5 kg
Weight per
Piece
b
68 mm
d
180 mm
