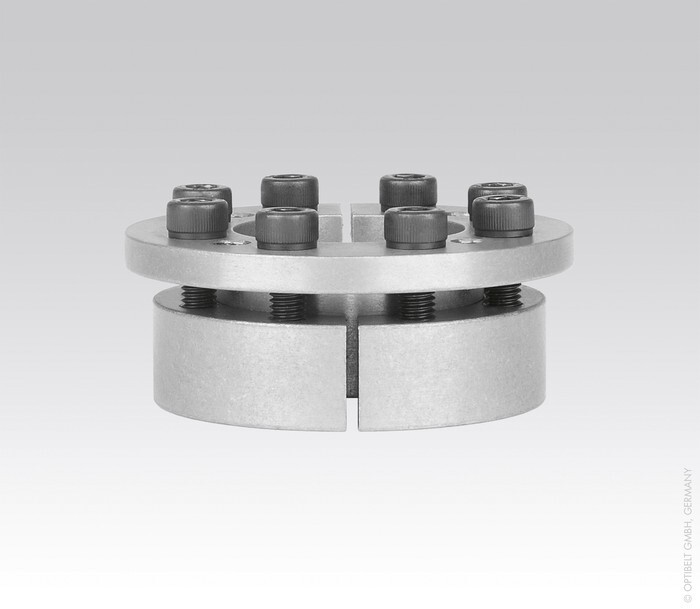

Clamping set
130x180 mm CE07Item-no.: 1322962customs tariff number: 84836080EAN: 4014486242836
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Spannsatz CE07
Attributes
Axial force F transmittable with tightening torque Ms
290 kN
Drehmoment M bei Anzugsmoment Ms übertragbar
19000 Nm
Drehmoment M bei Anzugsmoment Ms übertragbar (Nm)
19000 Nm
Product group
optibelt CE
Screws - Designation
M12x30
Screws - Quantity
12
Screws - tightening torque Ms
145 Nm
Surface pressure hub PN
130 N/mm²
Surface pressure shaft PW
124 N/mm²
Weight
4.6 kg
Weight per
Piece
b
52 mm
d
180 mm
