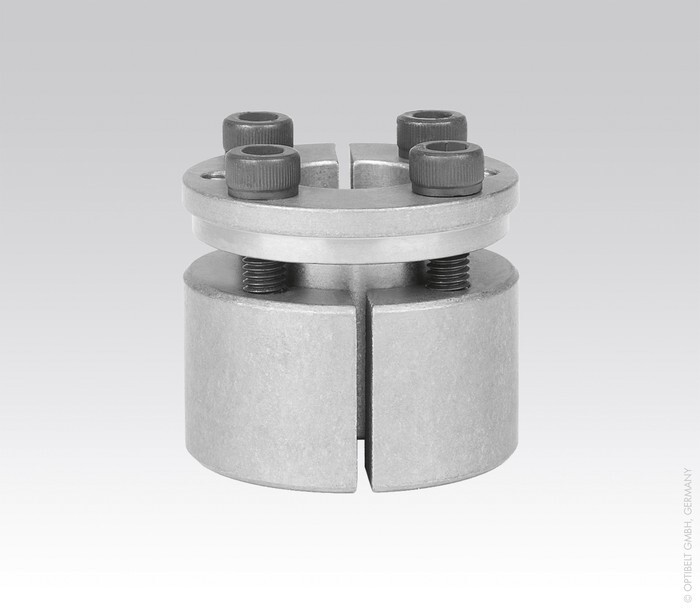

Clamping set
150x200 mm CE05Item-no.: 1250082customs tariff number: 84836080EAN: 4014486242232
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Spannsatz CE05
Attributes
Axial force F transmittable with tightening torque Ms
400 kN
Drehmoment M bei Anzugsmoment Ms übertragbar
30300 Nm
Drehmoment M bei Anzugsmoment Ms übertragbar (Nm)
30300 Nm
Product group
optibelt CE
Screws - Designation
M14x40
Screws - Quantity
10
Screws - tightening torque Ms
185 Nm
Surface pressure hub PN
158 N/mm²
Surface pressure shaft PW
143 N/mm²
Weight
5.4 kg
Weight per
Piece
b
54 mm
d
200 mm
