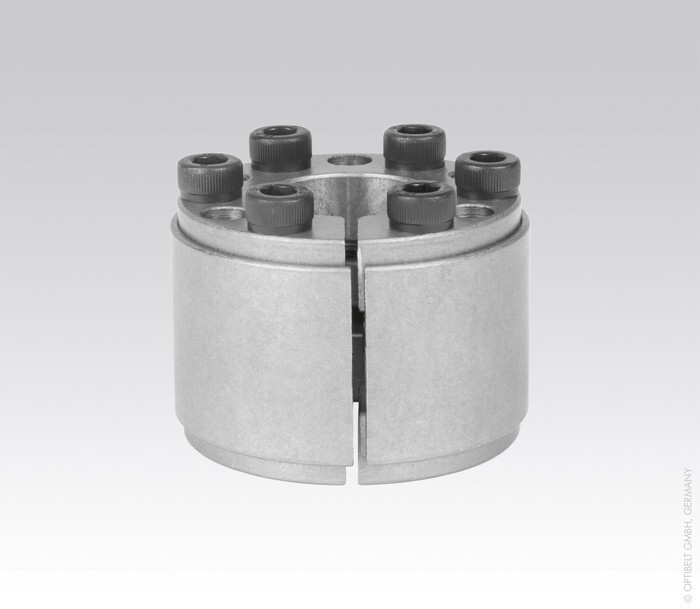

Clamping set
160x210 mm CE08Item-no.: 1074526customs tariff number: 84836080EAN: 4014486243109
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Spannsatz CE08
Attributes
Axial force F transmittable with tightening torque Ms
900 kN
Drehmoment M bei Anzugsmoment Ms übertragbar
75000 Nm
Drehmoment M bei Anzugsmoment Ms übertragbar (Nm)
75000 Nm
Product group
optibelt CE
Screws - Designation
M14x90
Screws - Quantity
16
Screws - tightening torque Ms
230 Nm
Surface pressure hub PN
110 N/mm²
Surface pressure shaft PW
189 N/mm²
Weight
1 kg
Weight per
Piece
b
116 mm
d
210 mm
