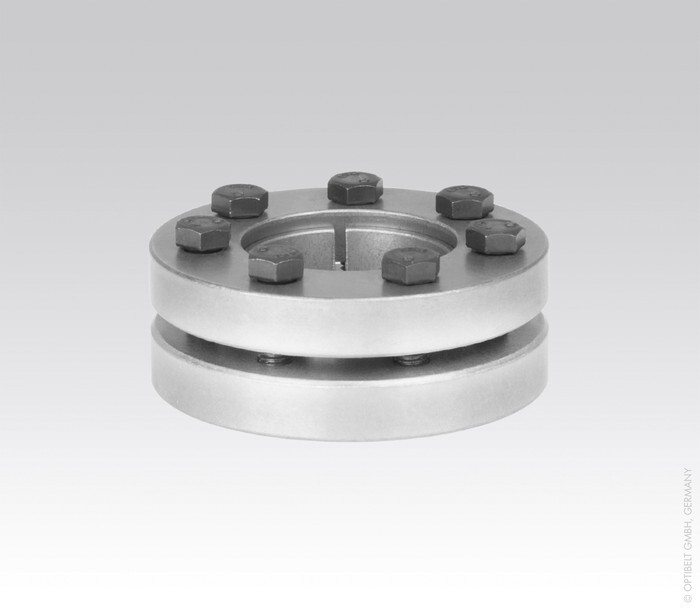

Clamping set
165x290 mm (shaft 115/120/125) CE14 (Hakon 271)Item-no.: 1455858customs tariff number: 84836080EAN: 4014486244021
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Spannsatz CE14
Attributes
Axial force F transmittable with tightening torque Ms
630 kN
Drehmoment M bei Anzugsmoment Ms übertragbar
36000 Nm
Drehmoment M bei Anzugsmoment Ms übertragbar (Nm)
36000 Nm
Product group
optibelt CE
Screws - Designation
M16
Screws - Quantity
8
Screws - tightening torque Ms
250 Nm
Surface pressure hub PN
265 N/mm²
Surface pressure shaft PW
195 N/mm²
Weight
20.6 kg
Weight per
Piece
b
68 mm
d
290 mm
