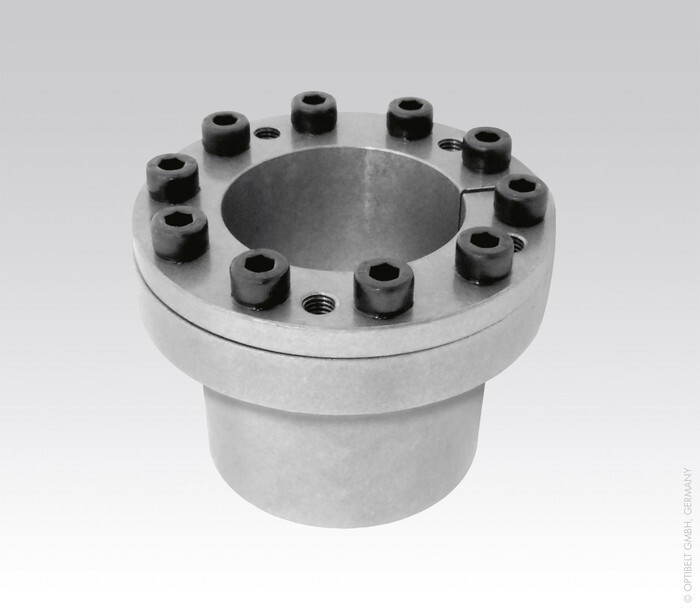

Clamping set
16x24 mm CE02Item-no.: 1181041EAN: 4014486240993
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Spannsatz CE02
Attributes
Axial force F transmittable with tightening torque Ms
19 kN
Drehmoment M bei Anzugsmoment Ms übertragbar
150 Nm
Drehmoment M bei Anzugsmoment Ms übertragbar (Nm)
150 Nm
Product group
optibelt CE
Screws - Designation
M6x16
Screws - Quantity
4
Screws - tightening torque Ms
15 Nm
Surface pressure hub PN
132 N/mm²
Surface pressure shaft PW
96 N/mm²
Weight
0.25 kg
Weight per
Piece
b
36 mm
d
24 mm
