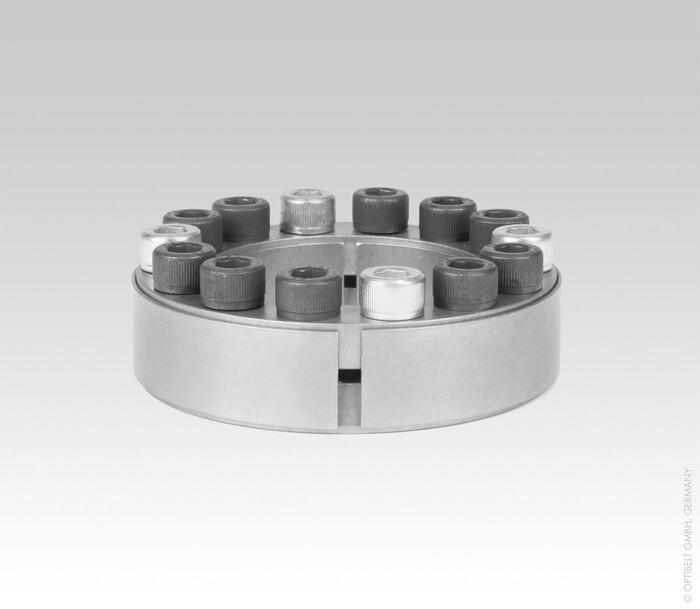

Clamping set
280x355 mm CE01Item-no.: 1130696customs tariff number: 84836080EAN: 4014486240863
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Spannsatz CE01
Attributes
Axial force F transmittable with tightening torque Ms
1000 kN
Drehmoment M bei Anzugsmoment Ms übertragbar
141000 Nm
Drehmoment M bei Anzugsmoment Ms übertragbar (Nm)
141000 Nm
Product group
optibelt CE
Screws - Designation
M18x60
Screws - Quantity
32
Screws - tightening torque Ms
400 Nm
Surface pressure hub PN
156 N/mm²
Surface pressure shaft PW
197 N/mm²
Weight
18.9 kg
Weight per
Piece
b
66 mm
d
355 mm
