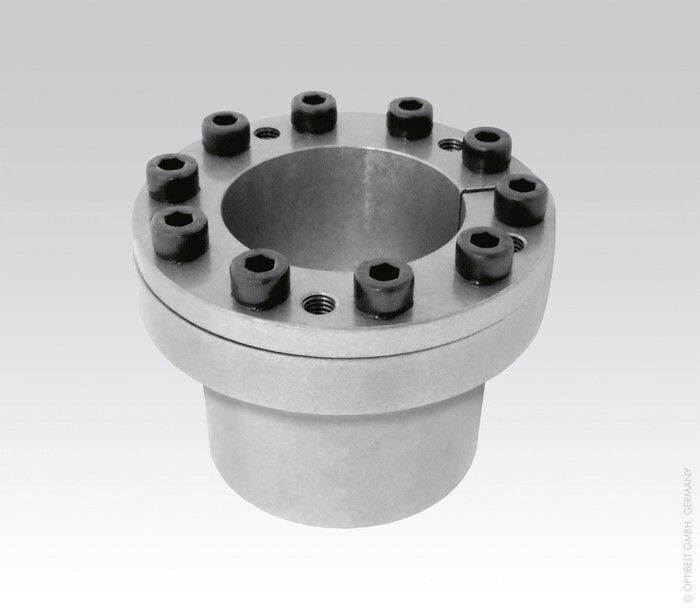

Clamping set
35x47 mm CE02Item-no.: 1074559EAN: 4014486241099
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Spannsatz CE02
Attributes
Axial force F transmittable with tightening torque Ms
46 kN
Drehmoment M bei Anzugsmoment Ms übertragbar
800 Nm
Drehmoment M bei Anzugsmoment Ms übertragbar (Nm)
800 Nm
Product group
optibelt CE
Screws - Designation
M6x18
Screws - Quantity
8
Screws - tightening torque Ms
17 Nm
Surface pressure hub PN
86 N/mm²
Surface pressure shaft PW
77 N/mm²
Weight
0.6 kg
Weight per
Piece
b
50 mm
d
47 mm
