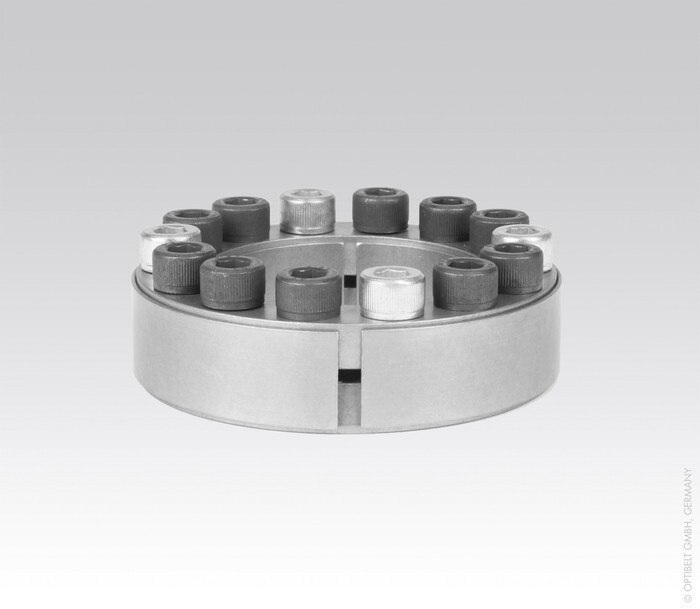

Clamping set
35x60 mm CE01Item-no.: 1074561customs tariff number: 84836080EAN: 4014486240566
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Spannsatz CE01
Attributes
Axial force F transmittable with tightening torque Ms
42 kN
Drehmoment M bei Anzugsmoment Ms übertragbar
730 Nm
Drehmoment M bei Anzugsmoment Ms übertragbar (Nm)
730 Nm
Product group
optibelt CE
Screws - Designation
M6x18
Screws - Quantity
12
Screws - tightening torque Ms
14.900000 Nm
Surface pressure hub PN
136 N/mm²
Surface pressure shaft PW
233 N/mm²
Weight
0.3 kg
Weight per
Piece
b
20 mm
d
60 mm
