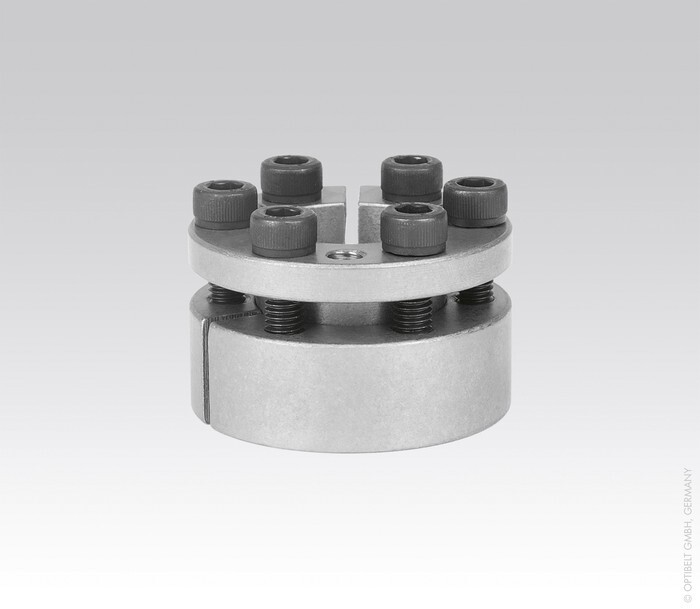

Clamping set
35x60 mm CE04Item-no.: 1074562customs tariff number: 84836080EAN: 4014486241723
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Spannsatz CE04
Attributes
Axial force F transmittable with tightening torque Ms
70 kN
Drehmoment M bei Anzugsmoment Ms übertragbar
1230 Nm
Drehmoment M bei Anzugsmoment Ms übertragbar (Nm)
1230 Nm
Product group
optibelt CE
Screws - Designation
M6x25
Screws - Quantity
8
Screws - tightening torque Ms
17 Nm
Surface pressure hub PN
120 N/mm²
Surface pressure shaft PW
140 N/mm²
Weight
0.6 kg
Weight per
Piece
b
42 mm
d
60 mm
