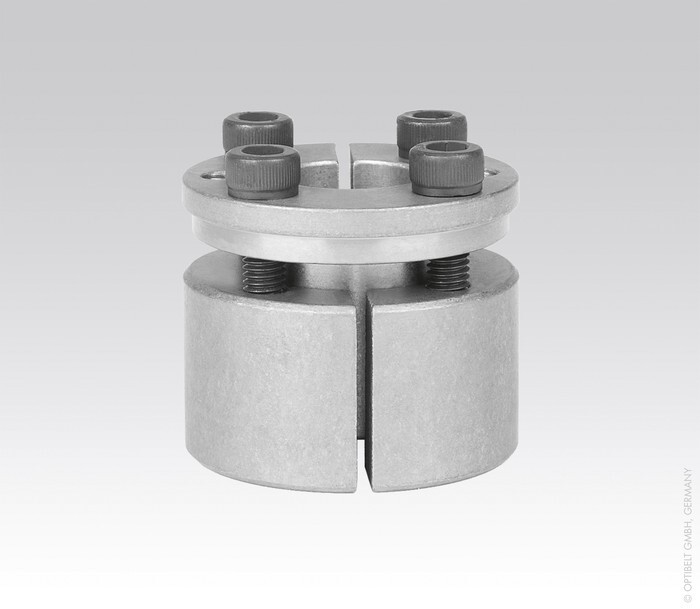

Clamping set
40x65 mm CE05Item-no.: 1074570customs tariff number: 84836080EAN: 4014486242058
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Spannsatz CE05
Attributes
Axial force F transmittable with tightening torque Ms
54 kN
Drehmoment M bei Anzugsmoment Ms übertragbar
1090 Nm
Drehmoment M bei Anzugsmoment Ms übertragbar (Nm)
1090 Nm
Product group
optibelt CE
Screws - Designation
M6x20
Screws - Quantity
8
Screws - tightening torque Ms
14 Nm
Surface pressure hub PN
132 N/mm²
Surface pressure shaft PW
145 N/mm²
Weight
0.38 kg
Weight per
Piece
b
28 mm
d
65 mm
