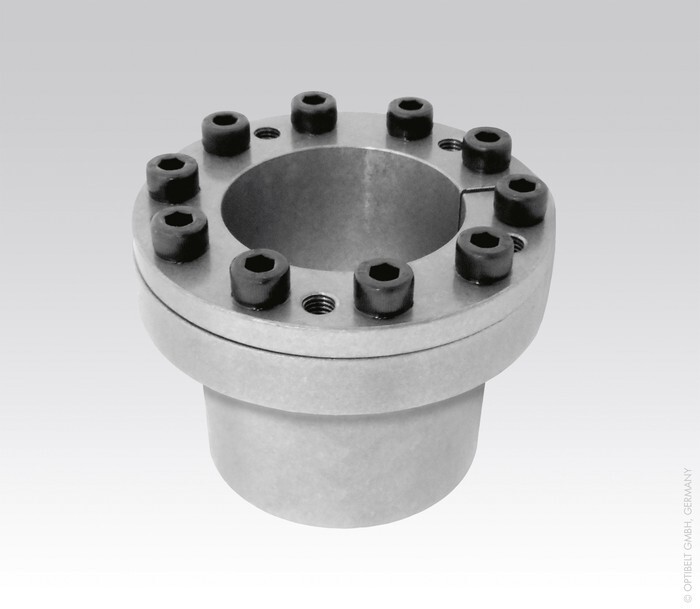

Clamping set
45x59 mm CE02Item-no.: 1074578customs tariff number: 84836080EAN: 4014486241136
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Spannsatz CE02
Attributes
Axial force F transmittable with tightening torque Ms
84 kN
Drehmoment M bei Anzugsmoment Ms übertragbar
1900 Nm
Drehmoment M bei Anzugsmoment Ms übertragbar (Nm)
1900 Nm
Product group
optibelt CE
Screws - Designation
M8x22
Screws - Quantity
8
Screws - tightening torque Ms
41 Nm
Surface pressure hub PN
94 N/mm²
Surface pressure shaft PW
84 N/mm²
Weight
1.2 kg
Weight per
Piece
b
65 mm
d
59 mm
