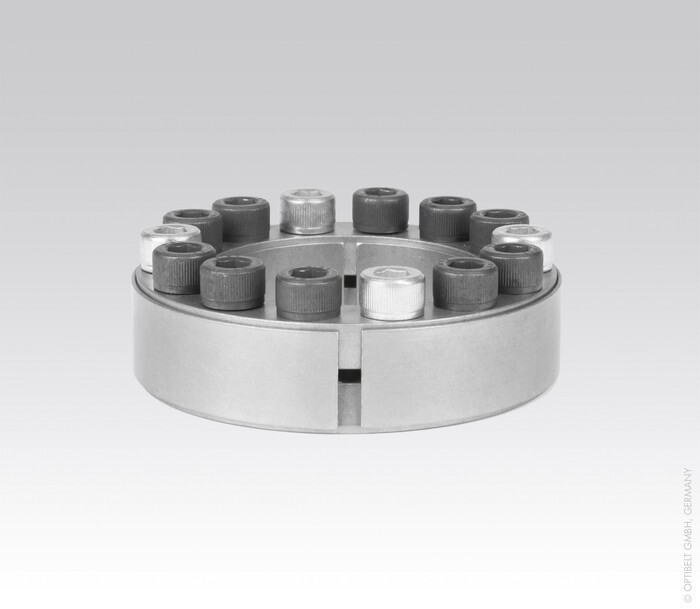

Clamping set
48x80 mm CE01Item-no.: 1074585customs tariff number: 84836080EAN: 4014486240610
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Spannsatz CE01
Attributes
Axial force F transmittable with tightening torque Ms
76 kN
Drehmoment M bei Anzugsmoment Ms übertragbar
1800 Nm
Drehmoment M bei Anzugsmoment Ms übertragbar (Nm)
1800 Nm
Product group
optibelt CE
Screws - Designation
M8x22
Screws - Quantity
12
Screws - tightening torque Ms
35 Nm
Surface pressure hub PN
153 N/mm²
Surface pressure shaft PW
254 N/mm²
Weight
0.6 kg
Weight per
Piece
b
24 mm
d
80 mm
