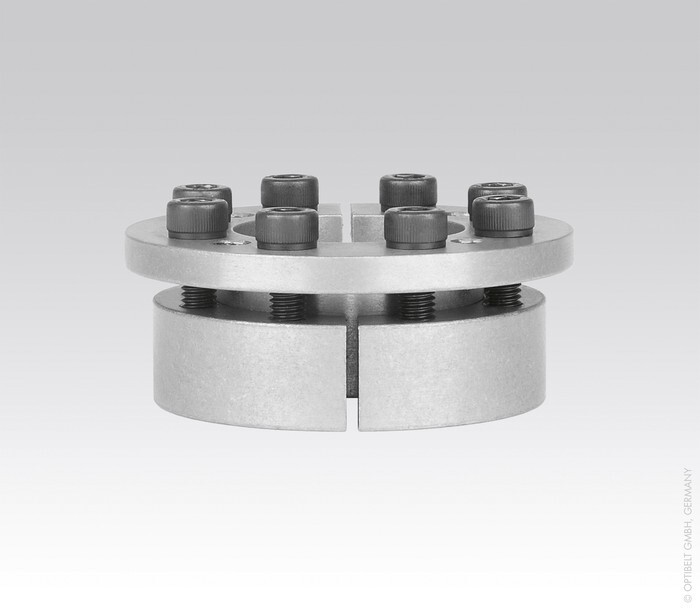

Clamping set
70x110 mm CE07Item-no.: 1163310customs tariff number: 84836080EAN: 4014486242751
Quantity:
1 Piece
=
1 BundlePackable
Price and stock visible after login
Description
Spannsatz CE07
Attributes
Axial force F transmittable with tightening torque Ms
130 kN
Drehmoment M bei Anzugsmoment Ms übertragbar
4600 Nm
Drehmoment M bei Anzugsmoment Ms übertragbar (Nm)
4600 Nm
Product group
optibelt CE
Screws - Designation
M10x30
Screws - Quantity
8
Screws - tightening torque Ms
83 Nm
Surface pressure hub PN
130 N/mm²
Surface pressure shaft PW
138 N/mm²
Weight
1.33 kg
Weight per
Piece
b
40 mm
d
110 mm
