Tension lock
GN 761-200-G-STST - Stahl
Item-no.: 1483641Supplier number: 761-200-G-STcustoms tariff number: 83089000EAN: 4045525659216
Quantity:
1 PiecePackable
Price and stock visible after login
Description

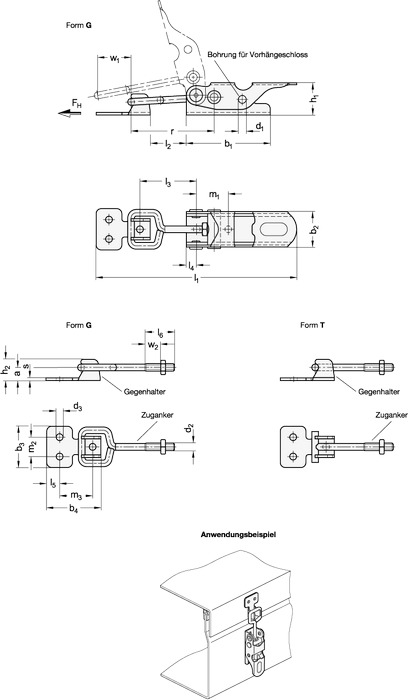

Toggle latches GN 761 are especially suited for rapid closing and fastening of covers, container lids and boxes. When the lever is closed, the eccentric configuration of the rod shaft causes the latch bolt to move towards the catch. At the end of the lever movement, the rod shaft has exceeded the eccentric dead center point, thereby automatically keeping the toggle latch closed. The latch bolts of the toggle latches can be adjusted within the adjustable range w2. The catch is included
Attributes
A
10
FH Haltekraft
2000 N
FH in N holding force
2000
Form
G - Tie rod with eyelet, with counterholder
L1
155.5
Material
ST - Steel
RoHS
Ja
Size
200
Weight
0.142 kg
b1
65
b2
27.5
b3
32
b4
42
d1
6
d2
M 6
d3
5.2
h1
25
h2
16.4
l2 Min.
28
l2min.
28
l3 min.
44
l3min.
44
l4
8
l5
10
l6
25
m1
24.5
m2
15
m3
24
r bei w2 = 0
64
r ≈at w2 = 2
64
s
2
w1 Stroke
14
w2 Adjustment range
11
