Ganter

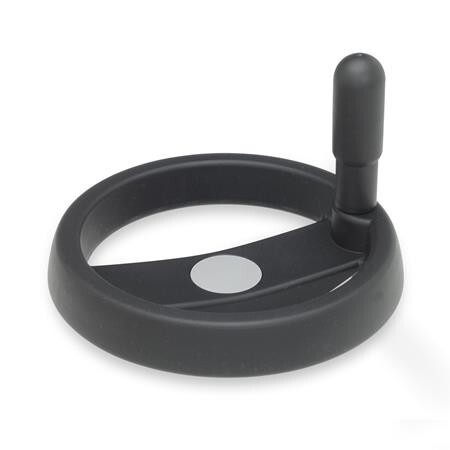

Spoked handwheel

GN 522.5-125-B12-R with stainless steel hub bushing
PP - Kunststoff
Item-no.: 1350755Supplier number: 522.5-125-B12-Rcustoms tariff number: 84879090EAN: 4045525923003

Quantity: ​​ 1 PiecePackable​

Short-term Sourcing

Description
Elegant design taking account of ergonomic and hygienic requirements are the outstanding features of spoked handwheels GN 522.5. Owing to the materials used, they are especially suitable for use in corrosive atmospheres or in areas which must be wet cleaned. In particular, the FDA certified plastic materials allow the use in the food industry.

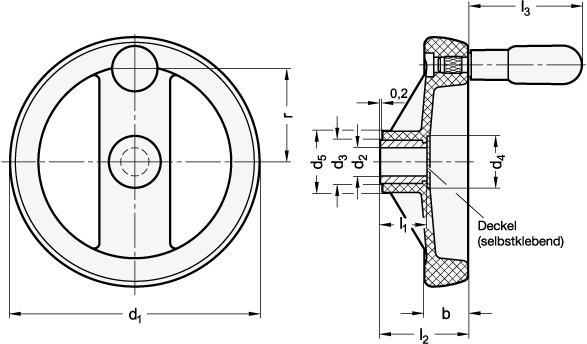

Attributes
Bore identification
B - without hub groove
Diameter d2
12
Form
R - with swivelling handle
L1
22
L2
44
Material
PP - plastic
Outer diameter d1
125
R
48
RoHS
Ja
Weight
0.280 kg
b
22
d3
22
d4
26
d5
31
l3
65
Ø Cylinder handle
22
Ø Zylindergriff
22
