Spoked handwheel with reversible handle
GN 924.3-125-B12-R-SW black matt KU-coatedAD - Die-cast aluminium
Item-no.: 1215399Supplier number: 924.3-125-B12-R-SWEAN: 4045525641488
Quantity:
1 PiecePackable
Item available in 29 variants:
Price and stock visible after login
Description

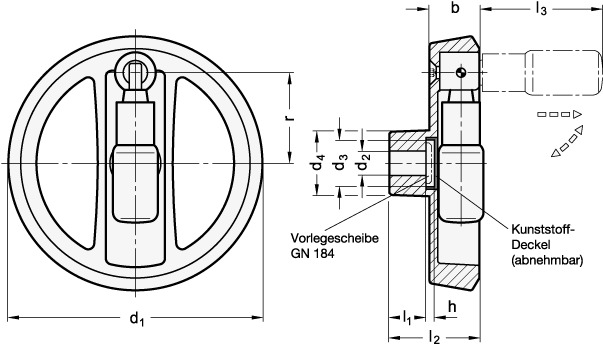

The handle in these handwheels is locked in a conical bore in the operating position. For reversal, it must first be pulled from the cone in axial direction. A pressure spring holds the handle in both positions. When swung out, it automatically engages again.
Attributes
Bohrungskennzeichen
B - ohne Nabennut
Bore labelling
B - without hub groove
Borehole diameter d2
12
Colour
SW - black, RAL 9005, textured matt
Form
R - with swivelling reversible handle
Handwheel diameter d1
125
L1
18
L2
45
Material
AD - Die-cast aluminium
R
45.5
Recommended disc
184-22
RoHS
Ja
Umleggriff
22
Weight
0.465 kg
b
24.5
d3
23
d4
31
empfohlenenVorlegescheibe
184-22
h
4
l2 ≈
45
l3
60.5
l3 ≈
60.5
r ≈
45.5
