Locking bolt
GN 702-17-40-C-RS Square add-on part, latch redZD - Zink-Druckguss
Item-no.: 1211282Supplier number: 702-17-40-C-RScustoms tariff number: 84879090EAN: 4045525706866
Quantity:
1 PiecePackable
Price and stock visible after login
Description

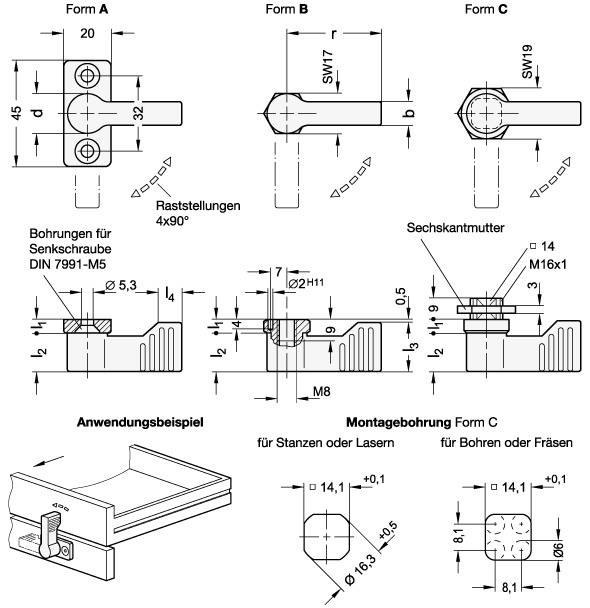

Stop locks GN 702 are particularly suitable for light-weight applications not exposed to dynamic loads, e.g. for keeping drawers closed. To mount stop locks of Type C, bore holes as shown in the diagram below must be set in the attachment surface. These mounting holes are usually made by punching or with laser. For small series and steel sheets below 2 mm thickness, the sheet metal punches GN 123 are the tool of choice. The mounting bore holes can also be made by drilling / milling.
Attributes
Colour
RS - red, RAL 3000, textured matt
Form
C - with external thread
Handle diameter d
17
L1
5.5
L2
16.5
Length r
40
Material
ZD - Zinc die casting
RoHS
Ja
Weight
0.070 kg
b
10
l1 ≈
5.5
l3 min.
21.5
l3min.
21.5
l4
11
